Humidity/Temp Transducer, -40 to 140F MPN:RHPX-3SSAA-00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7359545

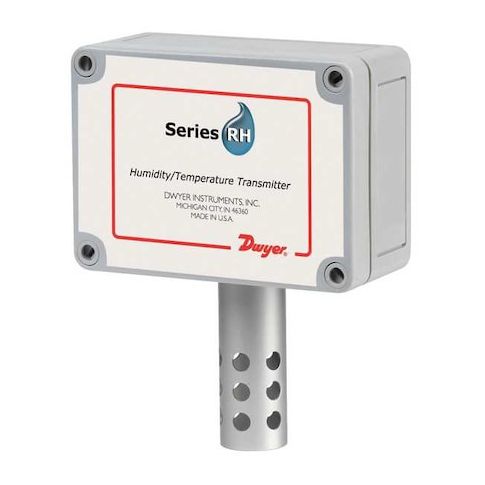

Humidity/Temp Transducer, -40 to 140F
The Dwyer Instruments Humidity/Temp Transducer is a versatile and reliable solution for measuring temperature and humidity levels in a variety of applications. Suitable for use in harsh environments, this transducer features a NEMA 4X rating and IP66 protection against dust and water. With a temperature range of -40 to 140°F and humidity range of 0 to 100%, it's ideal for industrial, commercial, and residential settings. The transducer's 4-20mA output and screw terminals provide easy integration with existing systems. Perfect for monitoring and controlling temperature and humidity in HVAC systems, data centers, and laboratories.
Top product features:
- Measures humidity and temperature within a range of 0 to 100 Percent relative humidity and -40 to 140F.
- Provides a temperature accuracy of +/-0.36 Degrees F at 77 Degrees F.
- Outputs a 4 to 20mA signal.
Top product applications:
- Monitoring and controlling temperature and humidity levels in data centers
- Measuring temperature and humidity levels in industrial process control applications
- Tracking temperature and humidity levels in laboratory settings for sensitive equipment protection
Humidity Transmitters, Maximum Sensed Temperature 140 Degrees F, Minimum Sensed Temperature -40 Degrees F, Temperature Accuracy +/-0.36 Degrees F @ 77 Degrees F, Power Required 10 to 35V DC, Electrical Connections Screw Terminals, Overall Length 2.23 in, NEMA Rating NEMA 4X, IP Rating IP66, Series RHP, Output 4 to 20mA, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-3 Percent 20 to 80 Percent RH at 25 Degrees C, Probe Length 3 in
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 5.30
- Package Height: 7.50
- Package Weight: 0.75
Product info last updated on February 25, 2026 1:00pm UTC
Category: Temperature and Humidity Measuring
