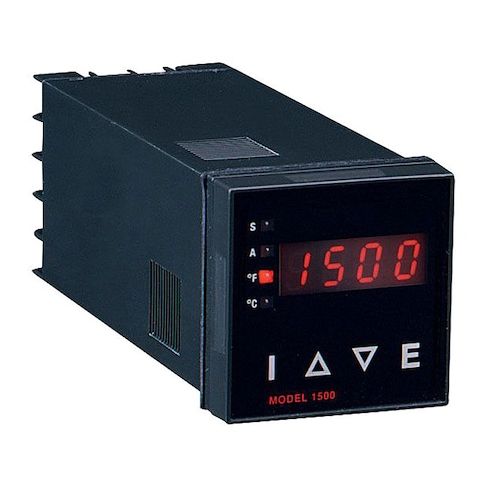

Temperature controller, thermocouple input, SSR output, with alarm. MPN:15111
Temperature controller, thermocouple input, SSR output, with alarm.
The Dwyer Instruments temperature controller is a versatile and reliable solution for precise temperature control. Ideal for use in industrial, commercial, and laboratory settings, this digital controller accepts thermocouple inputs from J, K, and T sensors and features automatic self-tune PID control for optimal performance. With a 3.5A SSR output and on/off action, it can control a wide range of devices. The compact DIN size 1/16 design makes it perfect for space-constrained applications. Suitable for applications such as temperature control in chemical processing, food service, and HVAC systems, this controller offers a high level of accuracy and reliability.
Top product features:
- Thermocouple input allows for accurate temperature measurement from various types of sensors.
- Automatic self-tune PID control enables precise temperature control with minimal user adjustment.
- Output SSR (Solid-State Relay) provides a reliable and efficient method for controlling heating or cooling devices.
Top product applications:
- Temperature control in a laboratory setting
- Temperature control in a manufacturing process
- Temperature control in a food processing environment
Temperature Controller, Digital, Thermocouple Types J, K, T Sensor Type, DIN Size 1/16, Input Voltage 100 to 240V AC, Switch Function 3.5 A @ 240 V AC Max, Output SSR, Temp. Range 14 Degrees to 131 Degrees F, Control Mode Automatic Self-Tune PID Control, PID, On/Off Action, P, PI, 3.5A Amps, Length 48 mm, Width 48 mm, Depth 128.1 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 5.20
- Package Height: 8.10
- Package Weight: 0.75
Product info last updated on February 20, 2026 11:02am UTC
Category: Industrial Electrical Controls and Automation
