Sight flow indicator, 1-1/4" body, 4.375" L x 2.563" D x 2.625" H (111 x 65 x 67 mm), 2.7 lb (1.2 kg). MPN:SFI-100-1-1/4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5840247

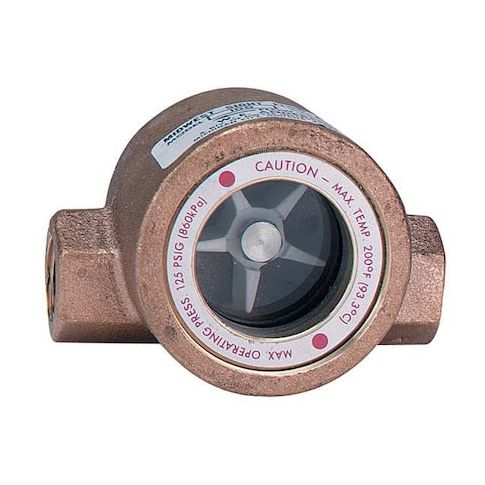

Sight flow indicator, 1-1/4" body, 4.375" L x 2.563" D x 2.625" H (111 x 65 x 67 mm), 2.7 lb (1.2 kg).
Monitor fluid flow in horizontal and vertical applications with the Window Sight Flow Indicator from Dwyer Instruments. This bronze-bodied indicator features a tempered glass window and impeller design for clear visibility of fluid movement. With a maximum operating pressure of 125 psig, it can handle a wide range of industrial and commercial applications, including water treatment, HVAC, and chemical processing. Its compact size and durable construction make it an ideal choice for monitoring flow in tight spaces, providing valuable insights into fluid movement and helping to optimize system performance.
Top product features:
- Window Sight Flow Indicator with a tempered glass sight
- Impeller type indicator rotor
- Bronze body construction
Top product applications:
- Water treatment systems
- Chemical processing plants
- Oil refineries
Window Sight Flow Indicator with Impeller, Indicator Type Rotor, Body Material Bronze, Connection Size 1 1/4 in, Connection Type FNPT, Operating Pressure - Maximum 125 psig, Sight Material Tempered Glass, Sight Diameter 2 in, Number of Windows 1, Flow Direction Horizontal Left, Horizontal Right, Vertical Down, Vertical Up, Media Temperature - Minimum 32 Degrees F, Media Temperature -Maximum 200 Degrees F, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 3.50
- Package Height: 3.40
- Package Weight: 2.10
Product info last updated on March 18, 2026 4:19pm UTC
Category: Flow Measuring Instruments
