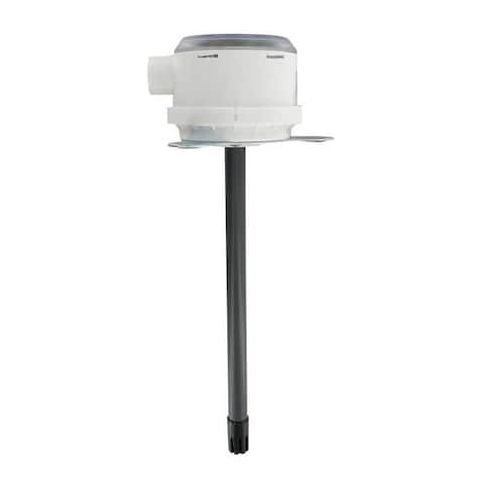

Duct mount 3% RH/temperature transmitter with 0-10 VDC RH output and 0-10 VDC temperature output. MPN:RHPX-3SDA0-00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5764823
Duct mount 3% RH/temperature transmitter with 0-10 VDC RH output and 0-10 VDC temperature output.
Monitor temperature and humidity levels with the Dwyer Instruments Duct Mount 3% RH/temperature transmitter. This reliable device senses temperatures from -40 to 140 degrees F and humidity levels from 0 to 100% RH. The 0-10V DC outputs provide accurate readings of both temperature and humidity, making it ideal for industrial and commercial applications. Use it in HVAC systems, laboratories, and manufacturing facilities to maintain optimal conditions and prevent equipment damage. The device's durable NEMA 4X rating and IP66 protection ensure reliable operation in harsh environments, making it a valuable addition to any monitoring system.
Top product features:
- Duct mount design allows for easy installation and secure mounting.
- 0-10 VDC RH output provides a linear signal for easy integration with control systems.
- Sensing element type 0 to 5V DC Solid State Band Gap offers high accuracy and reliability.
Top product applications:
- Duct mount RH/temperature transmitter for monitoring humidity and temperature levels in HVAC systems.
- Temperature and humidity monitoring in industrial manufacturing processes.
- Relative humidity and temperature measurement in laboratory settings for research and testing purposes.
- Humidity/Temp Transducer, Maximum Sensed Temperature 140 Degrees F, Minimum Sensed Temperature -40 Degrees F, Temperature Accuracy +/-0.9 Degrees F at 77 Degrees F, Power Required 15 to 35V DC
- 15 to 29V AC, Electrical Connections Screw Terminals, Overall Length 11.59 in, NEMA Rating NEMA 4X, IP Rating IP66, Series RHP, Output 0 to 10V DC, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy 3 Percent, Probe Length 9 in, Sensing Element Type 0 to 5V DC Solid State Band Gap
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 5.90
- Package Height: 14.00
- Package Weight: 0.90
Product info last updated on March 5, 2026 9:18pm UTC
Category: Temperature and Humidity Measuring
