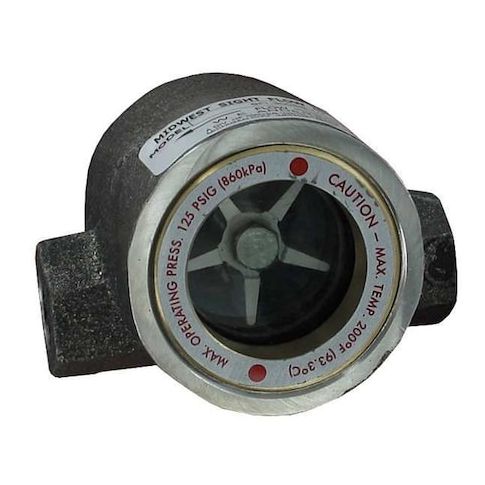

Sight flow indicator, 1-1/4" body, 4.375" L x 3.125" D x 2.563" H (111 x 79 x 65 mm), 3.0 lb (1.4 kg). MPN:SFI-300SS-1-1/4

The Dwyer Instruments Window Sight Flow Indicator is a versatile tool for monitoring fluid flow in various applications. Its 316 stainless steel body and tempered glass sight ensure durability and visibility, while the impeller design provides a clear indication of flow direction and velocity. Suitable for horizontal and vertical flow, this indicator is ideal for use in water treatment, chemical processing, and HVAC systems. Its compact size and robust construction make it easy to install and maintain, providing valuable insights into fluid flow and helping to optimize system performance.

Top product features:

• Window Sight Flow Indicator with Impeller, Indicator Type Rotor, Body Material 316 Stainless Steel, Connection Size 1 1/4 in, Connection Type FNPT, Operating Pressure Maximum 125 psig, Sight Material Tempered Glass, Sight Diameter 2 in, Number of Windows 2, Flow Direction Horizontal Left, Horizontal Right, Vertical Down, Vertical Up, Media Temperature Minimum 32 Degrees F, Media Temperature -Maximum 200 Degrees F, Seal Material Buna-N
• The product has a tempered glass sight that allows for clear observation of fluid flow.
• The product features a rotor-style indicator that provides visual indication of fluid flow direction.

Top product applications:

• Pipe inspection and maintenance
• Monitoring flow direction in industrial processes
• Visualizing fluid flow in laboratory settings
