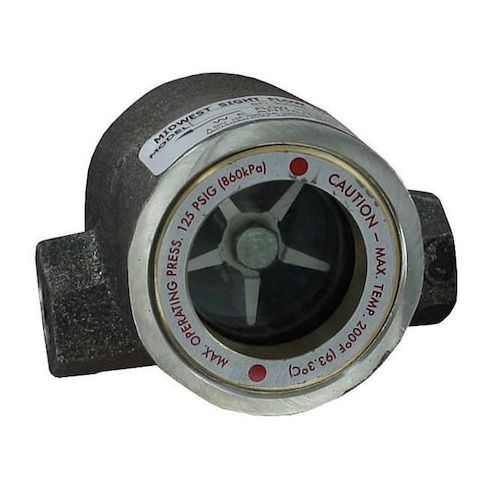

Sight flow indicator, 2" body, 5.500" L x 3.688" D x 4.063" H (140 x 93 x 103 mm), 7.0 lb (3.2 kg). MPN:SFI-300SS-2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5613273
Sight flow indicator, 2" body, 5.500" L x 3.688" D x 4.063" H (140 x 93 x 103 mm), 7.0 lb (3.2 kg).
The Dwyer Instruments Window Sight Flow Indicator is a versatile and reliable tool for monitoring fluid flow in various applications. Its 2-inch body and 316 stainless steel construction ensure durability and resistance to corrosion. The indicator's tempered glass windows provide a clear view of fluid flow, while its impeller design allows for easy installation and maintenance. Suitable for use in horizontal and vertical applications, this sight flow indicator is ideal for industries such as chemical processing, water treatment, and oil and gas exploration. Its compact size and easy installation make it a valuable asset for any facility.
Top product features:
- Window Sight Flow Indicator with tempered glass sight
- Indicator Type Rotor
- 316 Stainless Steel body material
Top product applications:
- Chemical Process Monitoring
- Water Treatment Plant Flow Visualization
- Industrial Cooling System Flow Observation
Window Sight Flow Indicator with Impeller, Indicator Type Rotor, Body Material 316 Stainless Steel, Connection Size 2 in, Connection Type FNPT, Operating Pressure - Maximum 125 psig, Sight Material Tempered Glass, Sight Diameter 2.9 in, Number of Windows 2, Flow Direction Horizontal Left, Horizontal Right, Vertical Down, Vertical Up, Media Temperature - Minimum 32 Degrees F, Media Temperature -Maximum 200 Degrees F, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.50
- Package Height: 4.70
- Package Weight: 7.90
Product info last updated on March 8, 2026 1:10pm UTC
Category: Flow Measuring Instruments
