Sight flow indicator, 1" body, 4.375" L x 3.125" D x 2.563" H (111 x 79 x 65 mm), 3.0 lb (1.4 kg). MPN:SFI-300-1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5178442
Sight flow indicator, 1" body, 4.375" L x 3.125" D x 2.563" H (111 x 79 x 65 mm), 3.0 lb (1.4 kg).

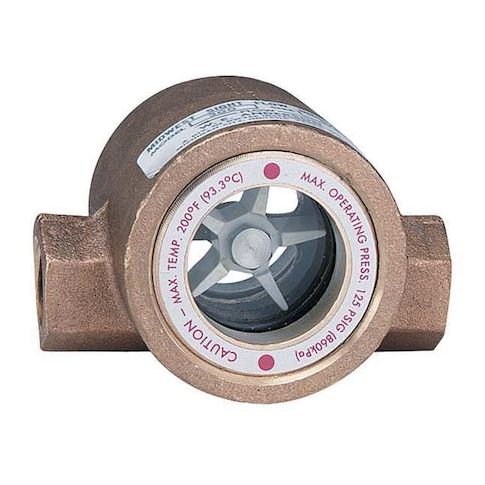

The Dwyer Instruments Window Sight Flow Indicator with Impeller is a versatile and reliable tool for monitoring fluid flow in various applications. Its 2-inch tempered glass windows provide a clear view of the flow direction and rate, while the impeller design allows for easy installation and maintenance. Suitable for horizontal and vertical flow directions, this sight flow indicator is ideal for use in chemical processing, pharmaceutical, and food and beverage industries, as well as in water treatment and pumping systems. Its compact 1-inch body and durable bronze construction make it a valuable asset for any facility requiring precise flow monitoring.
Top product features:
- Window Sight Flow Indicator with Impeller
- Indicator Type Rotor
- Sight Material Tempered Glass
Top product applications:
- Water treatment systems to monitor flow and detect blockages
- Petrochemical processing plants to inspect flow and detect debris
- Chemical processing facilities to observe flow and detect contamination
Window Sight Flow Indicator with Impeller, Indicator Type Rotor, Body Material Bronze, Connection Size 1 in, Connection Type FNPT, Operating Pressure - Maximum 125 psig, Sight Material Tempered Glass, Sight Diameter 2 in, Number of Windows 2, Flow Direction Horizontal Left, Horizontal Right, Vertical Down, Vertical Up, Media Temperature - Minimum 32 Degrees F, Media Temperature -Maximum 200 Degrees F, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 3.50
- Package Height: 3.50
- Package Weight: 2.98
Product info last updated on March 21, 2026 1:55pm UTC
Category: Flow Measuring Instruments
