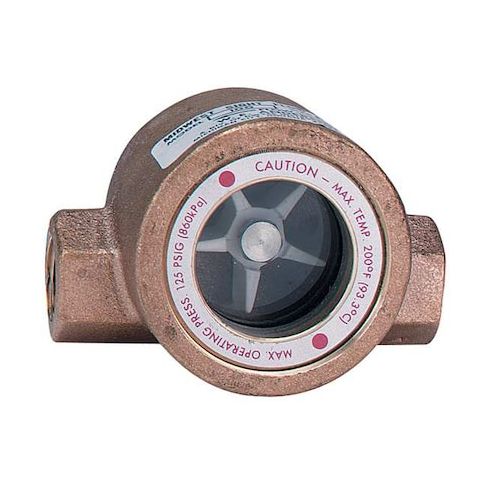

Sight flow indicator, 3/4" body, 4.000" L x 2.250" D x 2.563" H (102 x 57 x 65 mm), 1.5 lb (0.7 kg). MPN:SFI-100-3/4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5173944
Sight flow indicator, 3/4" body, 4.000" L x 2.250" D x 2.563" H (102 x 57 x 65 mm), 1.5 lb (0.7 kg).
This Sight Flow Indicator provides a clear view of fluid flow in a variety of applications, including chemical processing, water treatment, and HVAC systems. The tempered glass window allows for easy observation of fluid movement, while the impeller design ensures accurate flow indication. Suitable for horizontal or vertical flow, this indicator is available for left or right-hand flow directions. Its compact 3/4 inch size makes it ideal for use in tight spaces, while its durable bronze body and Buna-N seals ensure long-lasting performance in temperatures ranging from 32°F to 200°F. Ships in 1 day from the US.
Top product features:
- Window Sight Flow Indicator with a rotor type indicator
- Tempered glass sight for clear visibility
- Buna-N seal for reliable operation in a wide temperature range
Top product applications:
- Monitoring water flow in residential plumbing systems
- Measuring the flow rate of chemicals in industrial processes
- Inspecting the flow of liquids in laboratory equipment
Window Sight Flow Indicator with Impeller, Indicator Type Rotor, Body Material Bronze, Connection Size 3/4 in, Connection Type FNPT, Operating Pressure - Maximum 125 psig, Sight Material Tempered Glass, Sight Diameter 2 in, Number of Windows 1, Flow Direction Horizontal Left, Horizontal Right, Vertical Down, Vertical Up, Media Temperature - Minimum 32 Degrees F, Media Temperature -Maximum 200 Degrees F, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 3.60
- Package Height: 3.60
- Package Weight: 2.25
Product info last updated on February 21, 2026 3:55pm UTC
Category: Flow Measuring Instruments
