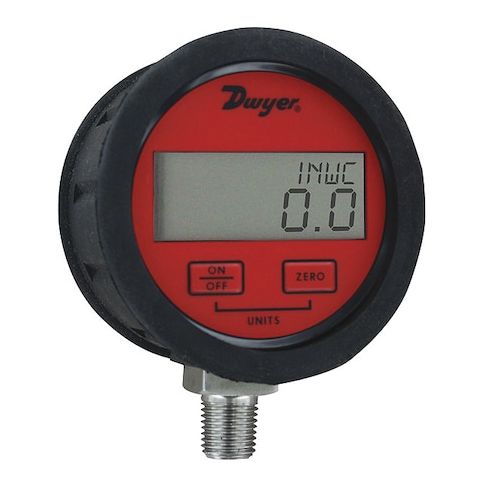

Digital Process Pressure Gauge, 0 to 100 psi, 3 in Dial, 1/4 in NPT, Bottom Location MPN:DPGAB-08
Digital Process Pressure Gauge, 0 to 100 psi, 3 in Dial, 1/4 in NPT, Bottom Location
Monitor process pressures with precision and accuracy using the Dwyer Instruments Digital Process Pressure Gauge. Ideal for applications in air and gas processing, this gauge features a 3-inch dial and accuracy of +/-0.50% to ensure reliable readings. Its ABS gauge case and stainless steel socket withstand harsh environments, while its digital display offers versatility with units including bar, in Hg, kg/sq cm, kPa, oz/sq in, and psi. Suitable for a range of industries, including manufacturing and research, this gauge is a valuable addition to any facility where precise pressure measurement is crucial.
Top product features:
- Measures process pressure up to 100 psi
- Displays pressure readings in multiple units, including bar, in Hg, kg/sq cm, kPa, oz/sq in, and psi
- Features a 3-inch dial with a +/-0.50 percent accuracy rating
Top product applications:
- Air Pressure Monitoring in Industrial Settings
- Monitoring Pressure in Gas Cylinders
- Measuring Pressure in Laboratory Equipment
Digital Process Pressure Gauge, Accuracy +/-0.50 Percent, Gauge Case Material ABS, Nominal Dial Size 3 in, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Compatible Process Media Air and Compatible Gases, Sensor Material Silicone, Socket Material Stainless Steel, Process Connection Type NPT, Display Units bar, in Hg, kg/sq cm, kPa, oz/sq in, psi, Process Connection Gender Male, Battery Type 9V Battery, Process Connection Location Bottom, Process Connection Size 1/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 4.50
- Package Height: 3.10
- Package Weight: 0.60
Product info last updated on February 21, 2026 3:54pm UTC
Category: Pressure and Vacuum Measuring
