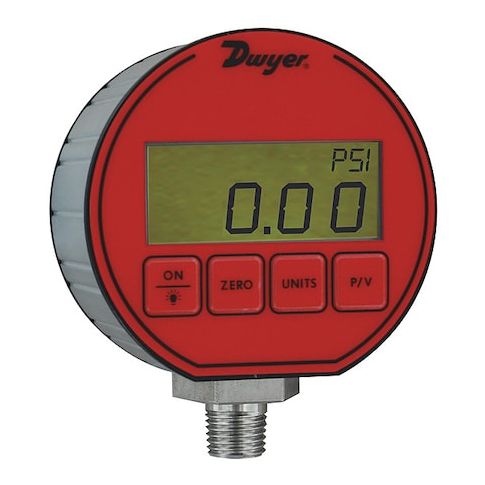

Digital Process Pressure Gauge, 0 to 500 psi, 3 in Dial, 1/4 in NPT, Bottom Location MPN:DPG-008
Digital Process Pressure Gauge, 0 to 500 psi, 3 in Dial, 1/4 in NPT, Bottom Location
Monitor process pressures with precision and accuracy using the Dwyer Instruments Digital Process Pressure Gauge. This rugged instrument features a 3-inch dial and measures pressures up to 500 psi, making it ideal for a wide range of applications, including industrial processes, laboratories, and hazardous locations. With its polycarbonate case and 316L stainless steel sensor, this gauge is resistant to corrosion and harsh environments. Its digital display shows pressure readings in multiple units, including psi, bar, and kPa, and is powered by two AAA batteries for easy operation. Suitable for use with liquids and combustible gases.
Top product features:
- Digital display shows pressure readings in multiple units, including bar, in Hg, kg/sq cm, kPa, oz/sq in, and psi.
- 316L Stainless Steel sensor material provides resistance to corrosion and durability in harsh environments.
- Polycarbonate gauge case material is impact-resistant and able to withstand rough handling.
Top product applications:
- Oil refineries for measuring high-pressure process liquids
- Chemical plants for monitoring pressure in hazardous locations
- Petrochemical facilities for gauging pressure in Class I, Division 1 areas
Digital Process Pressure Gauge, Accuracy +/-0.50 Percent, Gauge Case Material Polycarbonate, Nominal Dial Size 3 in, IP/NEMA Rating NEMA 4X, Hazardous Location Rating Class I, Division 1, Groups A, B, C, D, Compatible Process Media Compatible Liquids and Combustible Gases, Sensor Material 316L Stainless Steel, Socket Material Stainless Steel, Process Connection Type NPT, Display Units bar, in Hg, kg/sq cm, kPa, oz/sq in, psi, Process Connection Gender Male, Battery Type (2) AAA Batteries
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 4.40
- Package Height: 2.90
- Package Weight: 0.70
Product info last updated on February 22, 2026 4:56pm UTC
Category: Pressure and Vacuum Measuring
