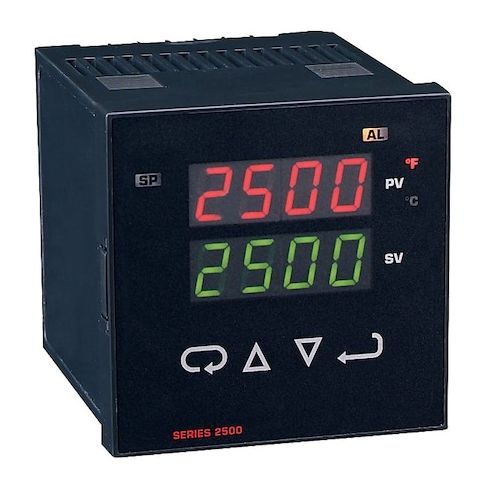

Digital Temperature Controller, 95.9 mm L MPN:25011
Digital Temperature Controller, 95.9 mm L
This digital temperature controller is a versatile and reliable solution for precise temperature control in a variety of applications. Use it to regulate temperature in industrial processes, laboratories, or commercial settings. The controller's PID and PI control modes ensure accurate and stable temperature control, while the programmable alarm feature provides customizable alerts for temperature deviations. The device's compact design and DIN size 1/4 make it easy to integrate into existing systems. Suitable for use with thermocouple sensors, this controller is ideal for applications such as food processing, chemical reactions, and research and development.
Top product features:
- Temperature measurement range from 14 Degrees to 131 Degrees F
- Control mode includes PID and PI for precise temperature control
- Solid state relay and mechanical relay outputs for versatile application
Top product applications:
- Temperature measurement and control in industrial processes
- Laboratory temperature control for scientific research
- Food processing and storage temperature control
Temperature Controller, Digital, Thermocouple Sensor Type, DIN Size 1/4, Input Voltage 100 to 240V AC, Switch Function 2.5 A @ 240V AC Resistive, Output SSR, Temp. Range 14 Degrees to 131 Degrees F, Control Mode PID, PI, 0 to 20mA Amps, Length 95.9 mm, Width 95.9 mm, Depth 115.8 mm, Outputs Include Solid State Relay, Mechanical Relay, Programmable Alarm can Act as High or Low or High/Low Guard Band Alarm, Alarms No Alarm, Power Consumption 5 VA, Standards CE, cULus, Series Series 2500
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.20
- Package Height: 7.90
- Package Weight: 1.10
Product info last updated on January 14, 2026 4:29pm UTC
Category: Industrial Electrical Controls and Automation
