Pressure Transmitter, 0 - 25 PSI, Conduit MPN:629C-03-CH-P2-E5-S1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2051761

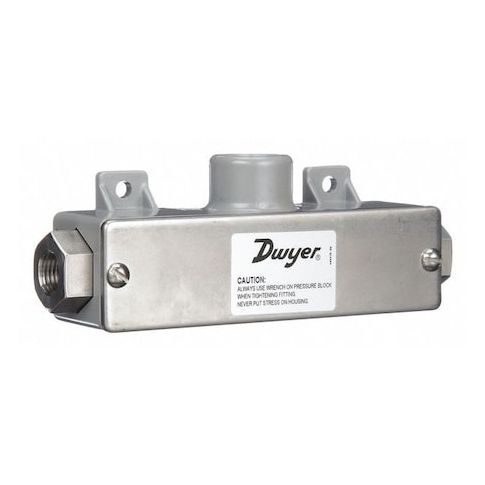

Pressure Transmitter, 0 - 25 PSI, Conduit
The Dwyer Instruments Pressure Transmitter is a reliable and accurate solution for measuring pressure in various applications. With a range of 0 to 25 PSI, it can be used in industries such as oil and gas, chemical processing, and water treatment. The transmitter's 4-20mA DC output and other analog outputs make it compatible with a wide range of control systems. Its rugged design and IP66 rating ensure it can withstand harsh environments. The pressure transmitter is ideal for monitoring pressure in pumps, valves, and other equipment, providing valuable insights for process optimization and maintenance.
Top product features:
- Measures differential pressure up to 25 PSI
- Outputs 4 to 20mA DC current for easy integration with control systems
- Has a screw terminal electrical connection for easy wiring and maintenance
Top product applications:
- Pressure Transmitter, 0 25 PSI, Conduit from Dwyer Instruments can be used in Oil and Gas Industry for monitoring pressure in pipes and tanks.
- Pressure Transmitter, 0 25 PSI, Conduit from Dwyer Instruments can be used in Power Plants for monitoring pressure in steam lines and boiler systems.
- Pressure Transmitter, 0 25 PSI, Conduit from Dwyer Instruments can be used in Chemical Processing Industry for monitoring pressure in reactors and storage tanks.
- Differential Transmitter, Output 4 to 20mA DC (2-Wire)
- 0 to 5V DC
- 1 to 5V DC
- 0 to 10V DC
- 2 to 10V DC (3-Wire), Minimum Pressure 0 psid, Maximum Pressure 25 psid, Overpressure 120 psi, Accuracy +/-0.50 Percent of Full Scale, Number of Wires 2, Process Connection Gender Female, Process Connection Size 3/16 in, Process Connection Type NPT, Power Required 10 to 35V DC, IP Rating IP66, NEMA Rating NEMA 4X, Series 629C, Housing Material Aluminum, Electrical Connections Screw Terminals
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 4.40
- Package Height: 2.60
- Package Weight: 0.70
Product info last updated on February 24, 2026 2:14pm UTC
Category: Pressure and Vacuum Measuring
