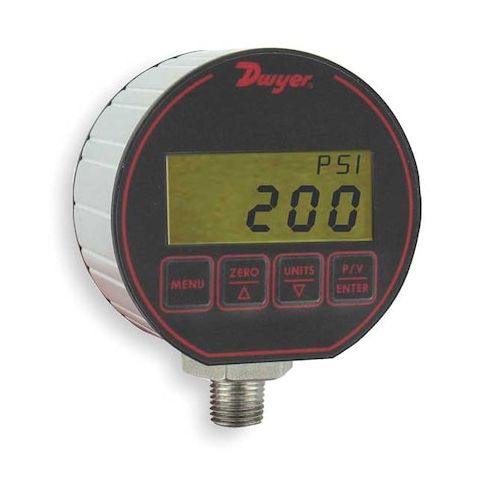

Digital pressure gage, selectable engineering units: 5000 psig, 351.5 kg/sq cm, 344.8 bar. MPN:DPG-211
Digital pressure gage, selectable engineering units: 5000 psig, 351.5 kg/sq cm, 344.8 bar.
The Dwyer Instruments Digital Vacuum Gauge with Transmitter is a versatile and accurate pressure measurement solution for a wide range of applications. Suitable for use in industrial settings, laboratories, and research facilities, this gauge offers selectable engineering units and a high level of accuracy. With a minimum pressure of 0 psi and a maximum pressure of 5,000 psi, it can handle a variety of pressure ranges. The gauge's 4 to 20mA DC output and IP66 rating make it ideal for use in harsh environments. It's perfect for monitoring pressure in HVAC systems, medical equipment, and industrial processes.
Top product features:
- Selectable engineering units
- Digital display with +/-0.25 Percent of Full Scale accuracy
- 4 to 20mA DC output
Top product applications:
- Industrial Process Control: The Dwyer Instruments Digital Pressure Gauge is used to monitor and control pressure levels in industrial processes, such as chemical plants, oil refineries, and power generation facilities.
- Laboratory and Research Applications: The gauge's high accuracy and ability to display pressure in various units make it suitable for use in laboratory and research settings, such as universities, research institutions, and pharmaceutical companies.
- Oil and Gas Industry: The gauge is used to monitor pressure levels in oil and gas wells, pipelines, and storage tanks, helping to ensure safe and efficient operation.
Digital Vacuum Gauge with Transmitter, Nominal Dial Size 3 in, Wetted Materials 316L Stainless Steel, Accuracy +/-0.25 Percent of Full Scale, Minimum Pressure 0 psi, Maximum Pressure 5,000 psi, Display Units bar, kg/cm2, psig, Output 4 to 20mA DC, Series DPG-200, Gauge Primary Range Units psi, Gauge Process Connection Gender Male, IP Rating IP66, NEMA Rating NEMA 4X, Gauge Process Connection Location Bottom, Gauge Process Connection Size 1/4 in, Gauge Process Connection Type MNPT
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.90
- Package Height: 4.10
- Package Weight: 0.97
Product info last updated on January 26, 2026 11:52pm UTC
Category: Pressure and Vacuum Measuring
