Transducer with Display, 0 to 200 Psi MPN:DPG-206
Transducer with Display, 0 to 200 Psi

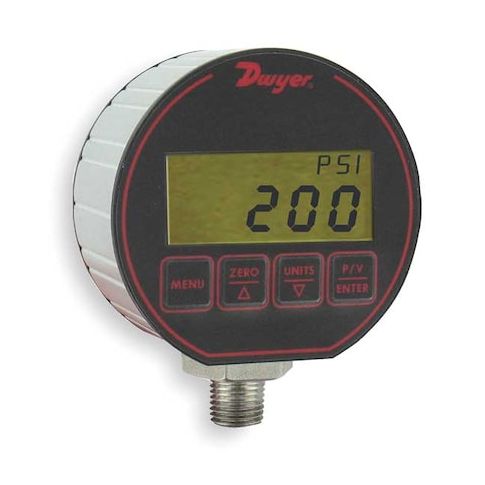

Monitor pressure levels with precision and accuracy using the Dwyer Instruments Transducer with Display. This rugged gauge measures pressures from 0 to 200 psi, providing +/-0.25% full-scale accuracy. Its compact 3-inch diameter display features a range of units, including bar, ft wc, and psig. Ideal for industrial applications, this gauge is wetted with 316L stainless steel and has a NEMA 4X rating for harsh environments. Use it in laboratories, manufacturing facilities, or anywhere precise pressure monitoring is required. Its 4-20mA DC output and IP66 rating make it a reliable choice for a variety of applications.
Top product features:
- Measures pressure up to 200 psi
- Displays pressure readings in various units, including bar, ft wc, and psig
- Transmits pressure readings as a 4-20mA DC signal
Top product applications:
- Process Monitoring in Chemical Plants
- Pressure Measurement in Oil and Gas Wells
- Vacuum Measurement in Medical Equipment
Digital Vacuum Gauge with Transmitter, Nominal Dial Size 3 in, Wetted Materials 316L Stainless Steel, Accuracy +/-0.25 Percent of Full Scale, Minimum Pressure 0 psi, Maximum Pressure 200 psi, Display Units bar, ft wc, in Hg, in wc, kg/cm2, kPa, oz/in�, psig, Output 4 to 20mA DC, Series DPG-200, Gauge Primary Range Units psi, Gauge Process Connection Gender Male, IP Rating IP66, NEMA Rating NEMA 4X, Gauge Process Connection Location Bottom, Gauge Process Connection Size 1/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 5.70
- Package Height: 4.30
- Package Weight: 0.89
Product info last updated on February 20, 2026 10:13am UTC
Category: Pressure and Vacuum Measuring
