Pressure Transducer, 0 to 30 PSI, +/-1Pct MPN:628-08-GH-P1-E4-S1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0057014

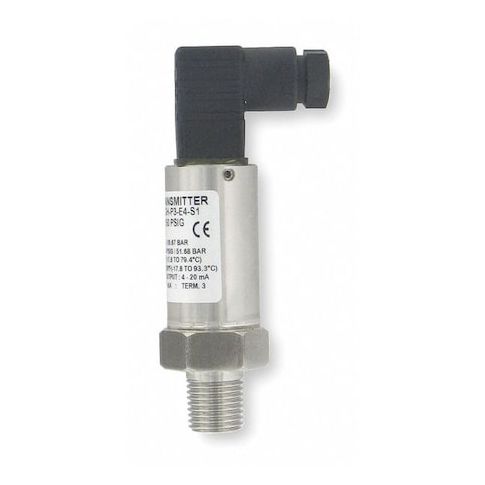

Pressure Transducer, 0 to 30 PSI, +/-1Pct
This pressure transducer from Dwyer Instruments is a reliable solution for measuring pressure in various industrial applications. With a 0 to 30 PSI measurement range and +/-1% accuracy, it provides precise readings for process control and monitoring. The 4 to 20mA DC output makes it compatible with most control systems. Suitable for use in harsh environments, it features a stainless steel housing with a NEMA 4X rating and IP66 protection. Ideal for applications such as oil and gas, chemical processing, and water treatment, this transducer offers a compact and durable solution for pressure measurement and control.
Top product features:
- Measures pressure up to 30 PSI
- Provides a 4 to 20mA DC output signal
- Operates in temperatures ranging from 0 to 200 Degrees F
Top product applications:
- Industrial Process Control: The Dwyer Instruments 0 to 30 PSI pressure transducer can be used to monitor and control pressure in industrial processes such as chemical plants, oil refineries, and power generation facilities.
- Medical Equipment: This pressure transducer can be used in medical equipment such as ventilators, anesthesia machines, and blood pressure monitors to measure and display pressure readings.
- Automotive Testing: The 0 to 30 PSI pressure transducer can be used in automotive testing facilities to measure and control pressure in tire testing machines, brake testing equipment, and other automotive test stands.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 30 psi, Electrical Connections 4-Pin DIN 43650 Form C Connector, Output 4 to 20mA DC, Accuracy +/-1 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 30V DC, NEMA Rating NEMA 4X, IP Rating IP66, Series 628, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature 0 Degrees F, Housing Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.30
- Package Height: 1.60
- Package Weight: 0.35
Product info last updated on February 6, 2026 8:35pm UTC
Category: Pressure and Vacuum Measuring
