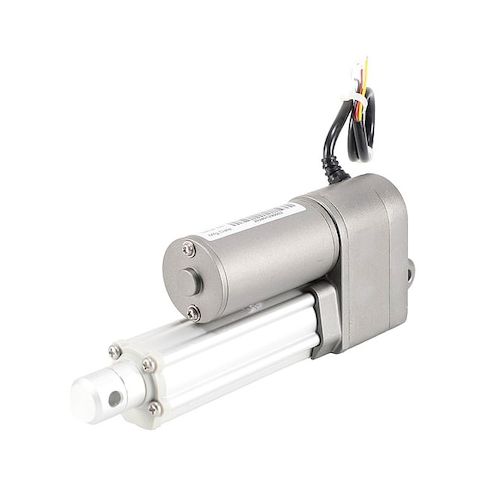

Linear Actuator, 112 lbf, 24V DC MPN:LT100-2-50P
Linear Actuator, 112 lbf, 24V DC
The Duff-Norton Linear Actuator is a high-performance, 24V DC motor-driven device designed for precise linear movement. With a load capacity of 112 lbf and a stroke length of 2 in, it's ideal for applications such as medical equipment, laboratory automation, and material handling. Its IP66-rated enclosure ensures dust and water resistance, while the included potentiometer provides precise control. Suitable for intermittent use with a 20% duty cycle, this actuator is perfect for applications requiring high accuracy and reliability. Its compact size and robust construction make it an excellent choice for a wide range of industries and applications.
Top product features:
- Linear actuator generates 112 lbf of force
- DC motor provides 24V DC power
- Gear drive system enables 0.5 in/sec speed at full load
Top product applications:
- Automotive Lifts
- Robotics and Automation
- Medical Equipment
Linear Actuator, Motor Type DC, Voltage 24V DC, Nut Material Plastic, Load Capacity 112 lbf, Stroke Length 2 in, Speed at Full Load 0.5 in/sec, Duty Cycle 20 Percent, Full Load Current 2 A, Retracted Length 6.1 in, Gear Material Metal, Drive System Type Gear, Enclosure IP Rating IP66, Includes Potentiometer Potentiometer Included, Housing Finish Polished, Housing Material Zinc Die Cast, Limit Switch Setting Fixed, Operating Temperature - Maximum 150 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.10
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 1.75
