Linear Actuator, 100 lbf, 12V DC MPN:TMD01-1906-12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G209215264
Linear Actuator, 100 lbf, 12V DC

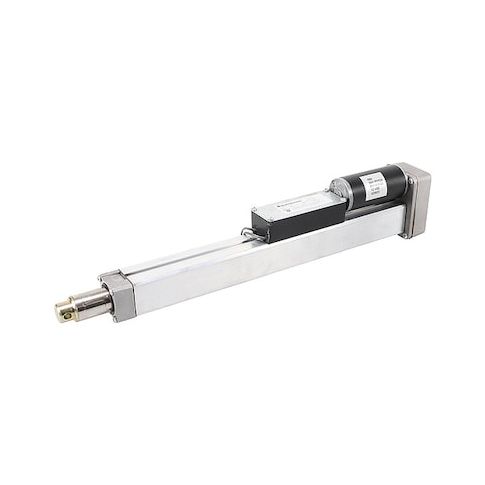

The Duff-Norton Linear Actuator is a reliable and efficient solution for linear motion applications. With a 100 lbf load capacity and 12V DC motor, it can handle a variety of tasks, from lifting and moving heavy objects to precision positioning in industrial and medical settings. Its adjustable limit switch setting and 25% duty cycle ensure smooth and controlled operation. Suitable for applications such as robotics, material handling, and medical equipment, this actuator provides a compact and lightweight solution with a stroke length of 12 inches and a retracted length of 16.75 inches. Its aluminum housing and IP50 enclosure ensure durability and protection.
Top product features:
- Permanent Magnet Motor Type: Provides a consistent and reliable source of power for the linear actuator.
- Stroke Length of 12 in: Allows for a wide range of motion and applications.
- Speed at Full Load of 0.7 in/sec: Enables precise and controlled movement of the load.
Top product applications:
- Automotive Lift Systems
- Material Handling Equipment
- Medical Equipment
Linear Actuator, Motor Type Permanent Magnet, Voltage 12V DC, Nut Material Plastic, Load Capacity 100 lbf, Stroke Length 12 in, Speed at Full Load 0.7 in/sec, Duty Cycle 25 Percent, Full Load Current 7 A, Retracted Length 16.75 in, Drive System Type Belt, Enclosure IP Rating IP50, Housing Material Aluminum, Limit Switch Setting Adjustable, Operating Temperature - Maximum 120 Degrees F, Operating Temperature - Minimum 25 Degrees F, Mounting Type Double Clevis
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.70
- Package Width: 6.00
- Package Height: 4.70
- Package Weight: 5.30
Product info last updated on January 31, 2026 2:40am UTC
Category: Bearings, V-belts and Power Transmission Equipment
