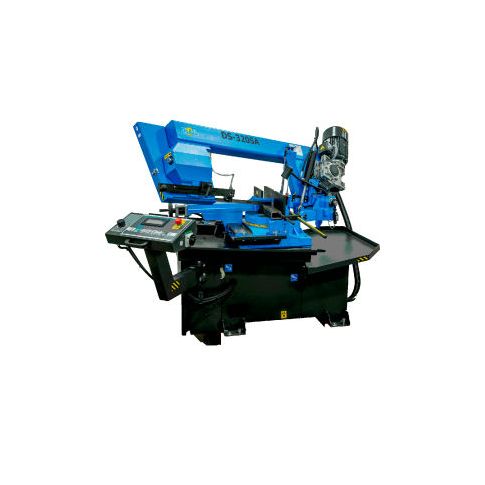

Dual Miter Semi-Automatic Horizontal Band Saw - 11.75" x 12.5" Machine Cap. - DoAll DS-320SA DS-320SA

The doall ds-320sa structurall® semi-automatic dual-miter band saw is designed for cutting vertical and angular material for low volume piece production. The ds-320sa dual-swivel ability allows miter-cutting from 60° right and 45° left. The semi-automatic ds-320sa features a variable frequency drive with programmable feed rates. A large variety of optional accessories are available to customize the machine for specific sawing requirements. Standard equipment ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" mitsubishi saw control overfeed protection blade-driven band brush 3.3 ft (1000mm) work stop directly mounted work height sensor variable frequency drive flood coolant tool kit complimentary doall cutting fluids package one doall bi-metal saw blade instruction and parts manuals on cd or usb data stick specifications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cutting capacity for round tube 11.75" (300mm) cutting capacity for rectangle 11.75 x 12.5" (300x320mm) cutting capacity for solid round 7" (180mm) miter cutting 0° - 60° right and 0° - 45° left miter cutting capacity for tube at 45° - right round 11.75" (300mm) rectangle 11.75 x 9.75" (300x250mm) miter cutting capacity for solid at 45° - right round 4-1/4" (110mm) miter cutting capacity for tube at 60° - right round 7.75" (200mm) rectangle 7.75 x 7.75" (200x200mm) miter cutting capacity for solid at 60° - right round 3-1/8" (80mm) miter cutting capacity for tube at 45° - left round 11" (280mm) rectangle 10.4" x 7.9" (265mm x 200mm) miter cutting capacity for solid at 45° - left round 4-1/4" (110mm) min and max nesting capacity at 90° 0.12" (3mm) to 12.5 x 6.25" (320x160mm) remnant length drop width 1.2" (30mm) band saw blade dimensions width 1 x 0.035" (27x0.9mm) length 144" (3660mm) band speed 10-240 fpm (35-70mpm) band drive motor 2 - 2.5 hp (1.4-1.8 kw)
