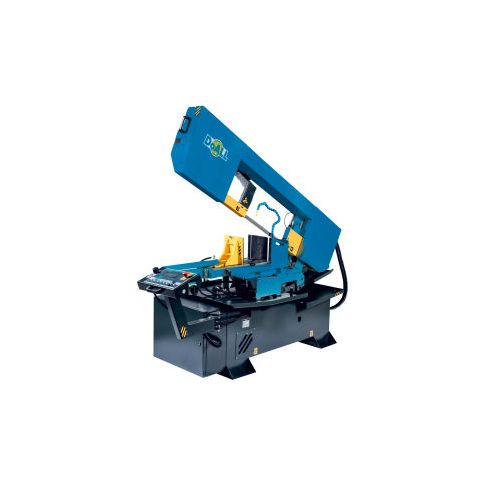

Dual Miter Semi-Automatic Horizontal Band Saw - 14" x 20" Machine Cap. - DoAll DS-500SA DS-500SA

The doall ds-500sa structurall® semi-automatic dual-miter metal-cutting band saw is designed for cutting material both linear and at angles. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural scissor saw the ds-500sa is ideal for machine shops repair facilities and industrial manufacturing plants that need to occasionally cut metal solid and profile material. A large variety of optional accessories are available to customize the machine for specific sawing requirements. Standard equipment ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" mitsubishi saw control variable frequency drive pulley-driven band brush overfeed protection digital read out of cutting angle flood coolant tool kit complimentary doall cutting fluids package one doall bi-metal saw blade instruction and parts manuals on cd or usb data stick specifications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cutting capacity round tube 14" (360mm) cutting capacity rectangle 14.17x19.69" (360x500mm) cutting capacity round solid 9-7/8" (250mm) nesting capacity min and max 0.20" (5mm) to 19.7" x 8.7" (500x220mm) miter cutting 60° left and 60° right capacity round at 45° 14.2" (360mm) capacity rectangle at 45° 15.75" x 7.5" (400x190mm) capacity round at 60° 12.2" (310mm) capacity rectangle at 60° 10.6" x 12.6" (270x320mm) band saw blade width 1-1/4" x 0.042" (34x1.1mm) max. Blade length 188" (4780mm) band speed 65-328 fpm (20-100mpm) band drive motor 4 hp (3 kw) hydraulic pump 0.07 hp (0.05 kw) coolant pump 0.6 hp (0.44 kw) coolant pump capacity 5-1/4 gal. (20 lit) material pass line height 32" (815mm) machine weight 1576 lbs (715 kg) dimensions w x l x h 114 x 43 x 56" (2873x1080x1420mm)
