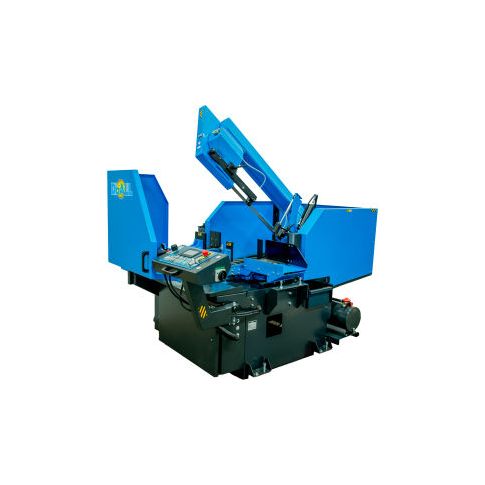

Automatic CNC Swivel Band Saw - 11.75" x 12.5" Machine Cap. - DoAll S-320CNC S-320CNC

The doall s-320cnc structurall® miter cnc automatic metal-cutting band saw is ideal for fabricating shops maintenance facilities tool and manufacturing plants. The s-320cnc can also be classified as a horizontal structural scissor-style miter-cutting saw. Hydraulically controlled this cnc machine provides automatic indexing for multiple material feeds. With the easy-to-use controller operators need only remove the material that has been cut. Designed for vertical and angular cuts the s-320cnc is adjustable to 60° to the right in semi-automatic mode only. Standard equipment ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" mitsubishi saw control variable frequency drive overfeed protection work height sensor discharge chute pulley-driven band brush flood coolant tool kit complimentary doall cutting fluids package one (1) doall bi-metal saw blade instruction and parts manuals on cd or usb data stick specifications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cutting capacity for round tube 11.75" (300mm) cutting capacity for rectangle 11.75 x 12.5" (300x320mm) cutting capacity for round solid 7" (180mm) index single stroke min-max 0.12-19.7" (3-500mm) auto index multiple stroke max 394" (9999mm) nesting capacity min to max 7.9" x 0.4" (200x10mm) up to 9 x 4.75" (230x120mm) miter cutting 0° - 60° right miter cutting capacity for tube at 45° - right round 11.75" (300mm) rectangle 11.75 x 9.75" (300x250mm) miter cutting capacity for solid at 45° - right round 4-1/4" (110mm) miter cutting capacity for tube at 60° - right round 7.75" (200mm) rectangle 7.75 x 7.75" (200x200mm) miter cutting capacity for solid at 60° - right round 3-1/8" (80mm) min and max nesting capacity at 90° 0.12" (3mm) to 12.5 x 6.25" (320x160mm) remnant length drop width 1.2" (30mm) band saw blade dimensions width 1 x 0.035" (27x0.9mm) length 144" (3660mm) band speed 65-328 fp

Additional Information
