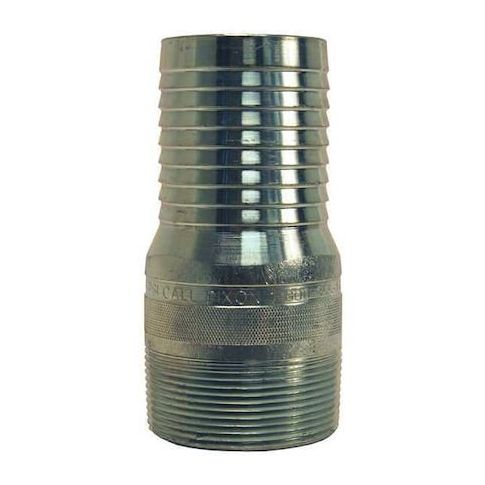

3/4" NPT Steel Combination Nipple Threaded MPN:STC5

Product Name: DIXON - STC5

Product Category: Push-On Hose Fittings

Product Type: Hose barb insert

Design: Straight-through

Body Material: Brass

Size: 0.312 inches

Max Pressure: 150 PSI

Operating Temperature Range: -40° to 212°F

Thread Size: 1/2" NPTF

Usage: For air/water/oil applications

The DIXON - STC5 is a hose barb insert, part of the family of Push-On Hose Fittings, intended for use in air, water, and oil applications. Constructed from brass, it features a straight-through design intended for continuous flow. Its performance is largely dependent on the proper usage and conditions. It has a 0.312 inch size, designed to manage moderate flow rates under normal operating conditions. It is rated for pressures up to 150 PSI and recommended for operating temperatures between -40° to 212°F. Its use under these specified conditions is recommended.

Key Features:

• Body Material: Brass – An excellent material known for its durability, corrosion resistance, and thermal conductivity.
• Design: Straight-Through – This design is intended for continuous flow. System efficiency depends on overall system design and conditions.
• Size: 0.312 inches – This size is designed to manage moderate fluid flow rates, suitable for a range of applications under normal operating conditions.
• Max Pressure: 150 PSI – This is the maximum pressure the fitting is rated for, its suitability for use in environments depends on proper installation and compliance with the recommended pressure range.
• Operating Temperature Range: -40° to 212°F – The product is rated for operation within this temperature range. Its effectiveness depends on the compatibility of climate and application with these parameters.
• Thread Size: 1/2" NPTF – This feature ensures compatibility with a widespread standard, enabling easy integration with existing systems.
• Usage: For air/water/oil applications – It is intended for use with air, water, and oil applications as specified in the product guidelines.
