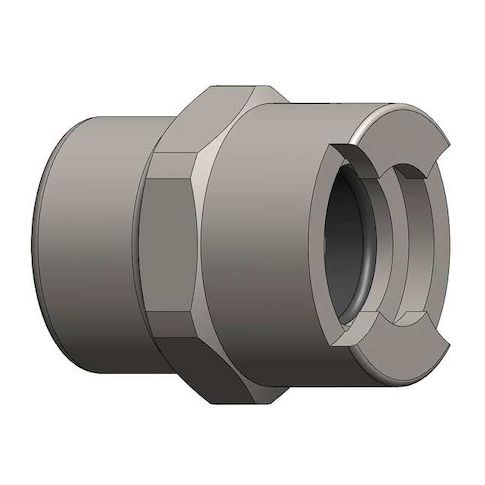

Female to Bowes Coupler, (F)NPT, 1/2, Brass MPN:4NF6-B
Easily connect and disconnect hoses with the Female to Bowes Coupler from DIXON. This quick connect coupling is designed for use with 1/2 inch NPT threaded hoses and features a durable brass construction for long-lasting performance. Ideal for applications in industrial, agricultural, and construction settings, this coupling allows for easy hose changes and reduces the risk of leaks and damage. Its compact design and reliable operation make it a valuable asset for any operation that requires frequent hose connections and disconnections.
Top product features:
- Quick Connect design allows for fast and easy assembly and disassembly of hoses
- Brass construction provides durability and resistance to corrosion
- Female NPT connection enables secure and leak-free attachment to compatible fittings
Top product applications:
- Industrial Hydraulic Systems
- Automotive Fluid Transfer Systems
- Aerospace Fueling Systems
The DIXON - 4NF6-B is a hose coupling with push-to-connect locking for rapid, tool-free connection and disconnection. It features a push-to-connect locking mechanism for connection without tools. Made of brass with a zinc plated finish and nitrile seals, this socket component is compatible with Bowes-style fittings for use with hoses having a 3/4 in inner diameter and with 1/2 in coupling sizes (as specified). The fitting has a threaded female 3/4"-14 NPT connection.
Key Features:
- - Material: Brass with zinc plated coating
- - Coupling component: Socket with push-to-connect locking type
- - Hose fitting gender and size: Female, 3/4 in
- - Thread size: 3/4"-14 NPT (female)
- - Compatible hose I.D.: 3/4 in
- - Application: On end of hose or pipe
- - Interchange type: Bowes style
- - Rated maximum flow rate: 5,776.64 L/min
- - Maximum working pressure rating: 300 psi at 70°F
- - Temperature range for operation: -40°F to 250°F
- - Overall length: 1.63 in
- - Maximum outside diameter: 1.56 in
- - Seal material: Nitrile
- - Color: Yellow
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 6.40
- Package Height: 4.80
- Package Weight: 8.58
