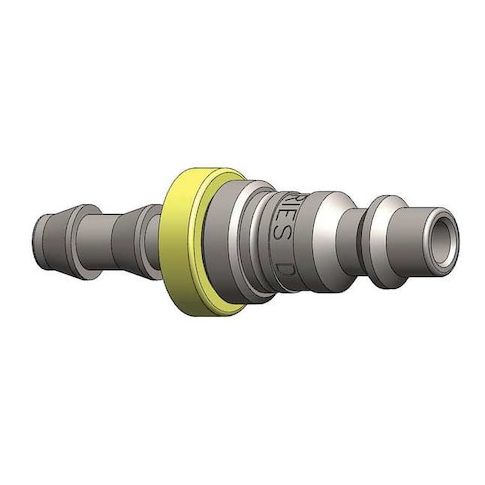

Push-Loc Barb to Industrial Plug, Steel MPN:D2B3

The DIXON - D2B3 is a quick connect hose coupling for connection and disconnection of hoses using a sleeve locking mechanism. It features a male hose barb connection with a 3/8 inch barb size and is compatible with industrial interchange type fittings. The coupling component is a plug with a sleeve locking mechanism, providing a sealed connection under the specified working pressure and temperature ranges. Constructed of steel with a zinc-plated finish, it is rated for a maximum working pressure of 500 psi at the specified conditions (Max. Working Pressure @ 70°F: 500 psi) and is rated for a maximum flow rate of 764.55 lpm. The fitting is rated for operation within a temperature range of -40°F to 250°F for the listed fluid transfer applications.

Key Features:

• - Application: On end of hose or pipe
• - Connection Type: Hose Barb
• - Hose Fitting Gender: Male
• - Barb Size and Hose Fitting Size: 3/8 in
• - Body Size and Coupling Size: 1/4 in
• - Coupling Component: Plug
• - Coupling Locking Type: Sleeve
• - Material: Steel with zinc plated finish
• - Seal Material: Nitrile
• - Max. Flow Rate: 764.55 lpm
• - Max. Outside Diameter: 7/8 in
• - Overall Length: 2.13 in
• - Temperature Range: -40°F to 250°F
• - Includes Valve: No
• - Interchange Type: Industrial
