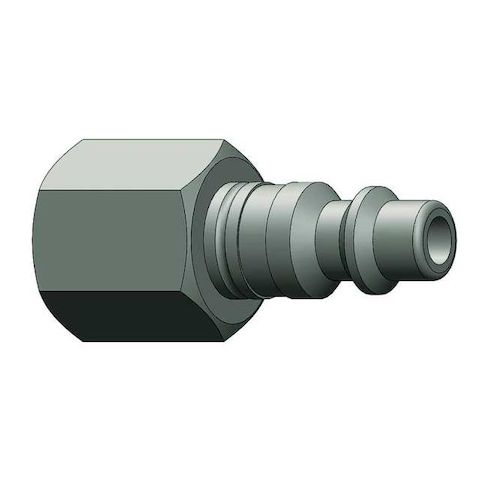

Female to indust. Plug, (F)NPT, 1/4, Brass MPN:D2F2-B
This Female to Industrial Plug features a 1/4 inch NPT connection and is constructed from durable brass. Ideal for use in a variety of applications, including hydraulic and pneumatic systems, it provides a reliable and secure connection. The plug's quick connect design makes it easy to install and remove, saving time and effort. Its corrosion-resistant brass material ensures long-lasting performance and durability. Suitable for use in a range of industries, including manufacturing, construction, and agriculture, this plug is a reliable choice for any application requiring a secure and easy-to-use connection.
Top product features:
- Quick Connect design allows for easy attachment and detachment of hoses
- Brass construction provides durability and resistance to corrosion
- Female NPT threading enables secure and leak-free connections
Top product applications:
- Hydraulic systems
- Industrial fluid transfer
- Air compressor connections
The DIXON - D2F2-B is a quick connect hose coupling designed for tool-free connection and disconnection of hoses or pipes, using a sleeve locking mechanism. It includes Nitrile O-rings intended to form a seal at the specified pressure and temperature conditions, and is compatible with water, air, and common fluids when used within the specified pressure/temperature ratings. The coupling fits on the end of hoses or pipes having a compatible size/thread per specified connection type (Female NPT) and 1/4"–18 thread size, enabling tool-free connection and disconnection for quicker hose changes (no claim of downtime reduction). It is for pneumatic, hydraulic, and general-purpose line applications when used within specified ratings and is designed with a sleeve locking mechanism for secure coupling engagement (no guarantee of security beyond design).
Key Features:
- - Material: Brass body construction
- - Connection Type: Female NPT with a 1/4
- -18 thread size.
- - Coupling Size and Body Size: 1/4 inch, matching hose fitting size and hose I.D. of 1/4 in.
- - Locking Type: Sleeve mechanism for secure coupling engagement (designed with a sleeve locking mechanism for secure coupling engagement).
- - Finish: Zinc plated surface treatment.
- - Seal Material: Nitrile O-rings for sealing.
- - Maximum Working Pressure: Maximum working pressure of 300 psi at 70°F (per specifications)
- - Maximum Flow Rate: Maximum flow rate of 764.55 L/min (per specifications)
- - Maximum Outside Diameter: 13/16 inch.
- - Overall Length: Approximately 1.69 inches (1 11/16 in).
- - Operating Temperature Range: Operating temperature range: -40°F to 250°F (per specifications)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 6.40
- Package Height: 4.60
- Package Weight: 8.51
