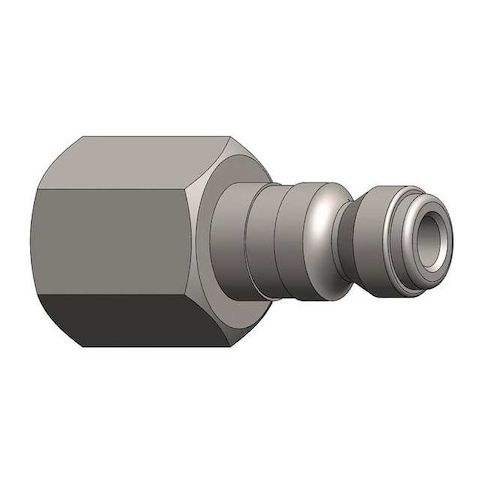

Coupler Plug, Steel, (F)NPT, 27 cfm MPN:J2F2

The DIXON - J2F2 is a quick connect hose coupling designed for rapid, tool-free connection and disconnection at the end of hoses or pipes. It features a sleeve locking mechanism and is compatible with Automotive Style tools and equipment, conforming to the Tru-Flate-Automotive interchange standard. Constructed from steel with a zinc-plated finish, it is intended for sealed connection of air, water, or fluid lines when installed using the specified fittings and seal material. The coupling is rated for use with hose sizes having a 1/4 inch inner diameter (as specified) and has a maximum working pressure of 500 psi, operating across a temperature range from -40°F to 250°F.

Key Features:

• - Body and coupling size: 1/4 inch with 1/4" -18 NPT female hose fitting thread.
• - Hose fitting gender: Female.
• - Material: Steel with a zinc-plated finish for surface protection.
• - Seal material: Nitrile, providing fluid-tight sealing.
• - Maximum flow rate: 736.23 liters per minute.
• - Maximum external diameter: 13/16 inch.
• - Overall length: 1.56 inches.
• - Locking mechanism: Sleeve type for secure connection.
• - Does not include an integrated valve.
