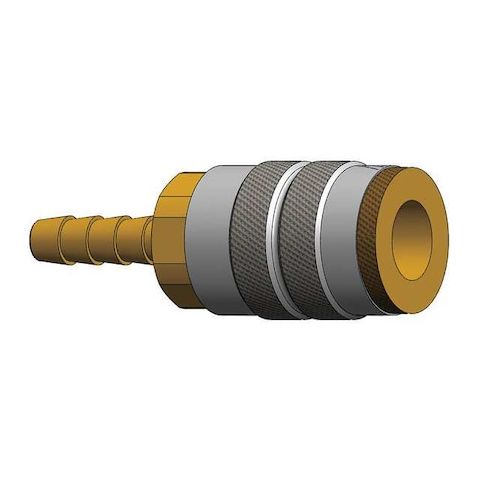

Barb to Indust. Coupler, Barb, 3/8, Steel MPN:3FS3
The DIXON 3FS3 Quick Connect Hose Coupling is a reliable and efficient solution for various industrial applications. Suitable for transferring fluid or air, this coupling features a hose barb connection type and an integrated tubular valve for easy flow control. Made from steel with a zinc-plated finish, it can withstand high pressures and extreme temperatures. Ideal for use in compressed air and fluid transfer applications, this coupling is rated for maximum working pressure of 500 psi at 70°F and operating temperature range of -40°F to 250°F. Its compact design and easy connection/disconnection make it perfect for various industries and settings.
Top product features:
- The product requires no additional tools for connection and disconnection.
- It features a hose barb connection type for use on the end of a hose or pipe.
- It includes an integrated tubular valve that opens/closes to control flow when connected or disconnected.
Top product applications:
- Fluid transfer applications
- Compressed air systems
- Industrial piping systems
The DIXON - 3FS3 hose coupling requires no additional tools for connection and disconnection. It is used for transferring fluid or air and features a hose barb connection type for use on the end of a hose or pipe. The coupling includes an integrated tubular valve that opens/closes to control flow when connected or disconnected. The fitting is made from steel with a zinc-plated finish and employs a sleeve locking mechanism. It is manufactured to the Industrial interchange standard and is rated for use with compressed air and for fluid transfer applications within the listed specifications (maximum working pressure 500 psi at 70°F
- operating temperature range -40°F to 250°F).
Key Features:
- - Hose barb size: 3/8 in, fitting hose inner diameter: 3/8 in
- - Coupling size: 3/8 in, body size: 3/8"
- - Hose fitting gender: Male
- - Includes tubular valve
- - Maximum working pressure: 500 psi at 70°F
- - Maximum flow rate: 1,274.26 liters per minute
- - Operating temperature range: -40°F to 250°F
- - Overall length: 2.88 in
- - Maximum outside diameter: 1 1/16 in
- - Seal material: Nitrile
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.50
- Package Height: 6.20
- Package Weight: 14.89
