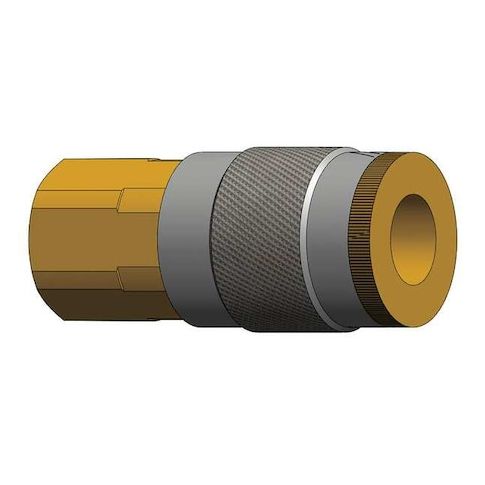

Female to Automotive Coupler, (F)NPT, 3/8 MPN:3JF3

The DIXON - 3JF3 is a hose coupling with a sleeve-type locking mechanism for rapid connection and disconnection at the end of a hose or pipe. Constructed of steel with a zinc-plated finish, it features a 3/8-inch body size and a female hose fitting of the same size. This coupling operates with a sleeve-type locking mechanism and includes an integrated tubular valve. It is compatible with Automotive Style fittings and is identified to the Tru-Flate-Automotive interchange standard. The coupling seals with nitrile material and supports a maximum working pressure of 500 psi at 70°F, along with a flow rate of up to 1,642.37 liters per minute. Operating temperature ranges from -40°F to 250°F.

Key Features:

• - Material: Steel with zinc-plated finish
• - Connection Type: 3/8"-18 NPT female thread for hose attachment.
• - Coupling Component: Socket with sleeve locking mechanism.
• - Hose Fitting Size and Body Size: 3/8 inch.
• - Includes a tubular-type valve integrated into the fitting.
• - Seal Material: Nitrile for fluid sealing.
• - Maximum working pressure rating: 500 psi at 70°F
• - Maximum Flow Rate: 1,642.37 lpm.
• - Maximum Outside Diameter: 1 1/16 inches.
• - Overall Length: 2.50 inches.
• - Temperature Range: -40°F to 250°F.
• - Designed for use with Automotive Style fittings under Tru-Flate-Automotive standard.
• - Application: Intended for installation on the end of hoses or pipes.
