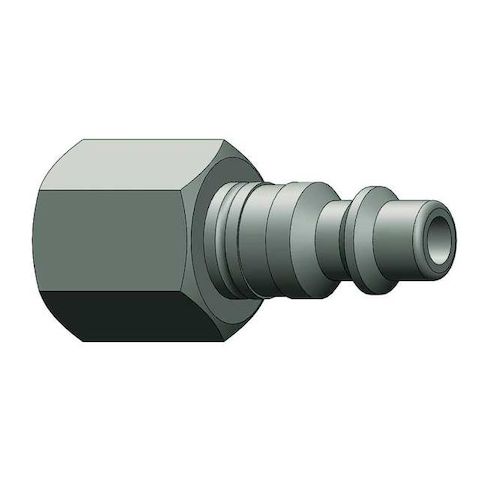

Female to indust. Plug, (F)NPT, 1/4, Steel MPN:D2F3
The DIXON D2F3 female to industrial plug is a reliable and efficient hose coupling designed for tool-assisted or hand-actuated connection and disconnection of hoses or equipment. Suitable for pneumatic, hydraulic, and general-purpose fluid handling applications, this coupling features a 1/4 inch steel plug with a nitrile seal, rated for operation within -40°F to 250°F. Its compact design, measuring 1.69 inches in length with a maximum outside diameter of 1 inch, makes it ideal for use in a variety of industries, including manufacturing, construction, and agriculture, where reliable and efficient fluid handling is crucial.
Top product features:
- Material constructed from steel with zinc-plated finish for surface protection
- Seal material is nitrile, specified for operation within -40°F to 250°F
- Designed without a barbed end, allowing for tool-assisted/hand-actuated connection and disconnection of hoses or equipment
Top product applications:
- Pneumatic fluid handling applications
- Hydraulic fluid handling applications
- General-purpose fluid handling applications
The DIXON - D2F3 is a hose coupling for tool-assisted/hand-actuated connection and disconnection of hoses or equipment with a sealed interface using a nitrile seal. It is intended for use on the end of a hose or pipe and accommodates fluid and air lines. Compatible with the specified hose fitting size and connection type (3/8 in hose
- NPT), this coupling features a female hose fitting that connects to a 3/8 in hose with a 1/4 in coupling size, intended for pneumatic, hydraulic, and general-purpose fluid handling applications within the specified pressure/temperature ratings. The locking mechanism uses a sleeve locking mechanism for attachment using the sleeve locking mechanism (no separate tools specified).
Key Features:
- - Material constructed from steel with zinc-plated finish for surface protection
- - Thread size of 3/8"-18 and NPT connection type
- - Seal material is nitrile, is specified for operation within -40°F to 250°F
- - Overall length measures 1.69 inches with a maximum outside diameter of 1 inch
- - Designed without a barbed end
- coupling component is a plug
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 5.80
- Package Height: 5.80
- Package Weight: 10.91
