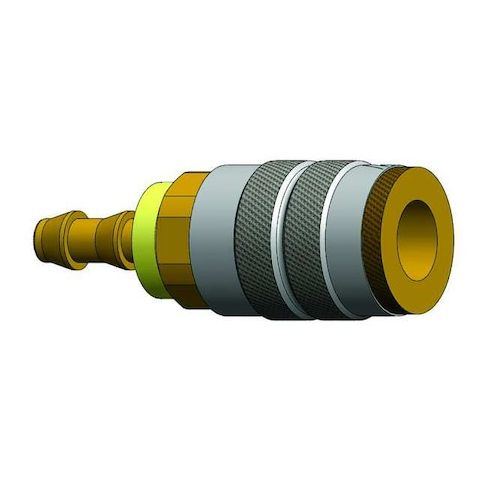

Coupler, Brass, 1/4 In Push Lock, 1/4 Body MPN:2FB2-B
This 1/4 inch push lock coupler is a reliable and efficient solution for connecting hoses in industrial applications. Made from durable brass, it features a socket and male hose barb design for easy connection and disconnection. With its quick connect mechanism, this coupler saves time and effort in high-pressure situations. Suitable for use with water, air, and other fluids, it's ideal for applications such as hydraulic systems, irrigation, and pneumatic tools. Its compact size and lightweight design make it easy to handle and store, while its corrosion-resistant brass construction ensures long-lasting performance.
Top product features:
- Quick Connect feature allows for easy hose attachment and detachment
- Push lock mechanism provides secure connection and prevents accidental disconnection
- Brass construction provides resistance to corrosion and ensures durability
Top product applications:
- Water Irrigation Systems
- Pneumatic Air Systems
- Industrial Cleaning Equipment
The DIXON - 2FB2-B is a quick connect hose coupling designed for connection and disconnection of hoses or equipment using a sleeve locking mechanism. Made of brass with a zinc plated finish, this coupling includes a male hose barb connection sized for 1/4 in inner diameter hose and 1/4 in barb size, allowing it to fit hoses with a matching 1/4 in barb size. The coupling includes an integrated tubular valve to regulate fluid or air flow during connection and disconnection. It is compatible for use at the end of hoses or pipe connections that match the specified barb size and standards and meets the Industrial interchange standard (per manufacturer specifications).
Key Features:
- - Material: Brass construction with zinc plated finish.
- - Connection type: Male hose barb, 1/4 in size for hose I.D. of 1/4 in.
- - Coupling component: Socket with sleeve locking type.
- - Includes a tubular valve to regulate flow (during connection and disconnection).
- - Rated maximum working pressure: 500 psi at 70°F.
- - Maximum rated flow rate: 764.55 liters per minute.
- - Rated operating temperature range: -40°F to 250°F.
- - Overall length: 2.5 inches.
- - Seal material: Nitrile.
- - Maximum outside diameter: 7/8 inch.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 8.50
- Package Height: 5.70
- Package Weight: 20.47
