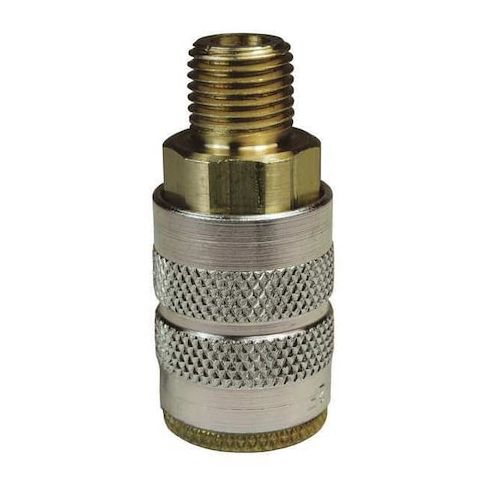

Male to Industrial Coupler, (M)NPT, 1/4 MPN:2FM2
Easily connect and disconnect hoses and pipes with the DIXON 2FM2 Quick Connect Socket Coupler. Designed for tool-free operation, this industrial-grade coupling provides a sealed interface for compressed air and fluid line applications, featuring a sleeve locking mechanism and valve for flow regulation. Constructed of corrosion-resistant steel with a zinc-plated finish, it's rated for 1/4 inch hose inner diameter and includes a tubular valve for controlling flow. Suitable for a wide range of applications, including manufacturing, construction, and maintenance, this coupling ensures efficient and reliable connectivity in demanding environments.
Top product features:
- Application: On end of hose or pipe for fluid and air line connectivity.
- The coupling features a sleeve locking mechanism.
- Includes a tubular valve for controlling fluid or air flow.
Top product applications:
- On end of hose or pipe for fluid line connectivity
- On end of hose or pipe for air line connectivity
- For fluid and air line connectivity
The DIXON - 2FM2 is a quick connect hose coupling designed for tool-free connection and disconnection at the end of a hose or pipe. It provides a sealed interface compatible with compressed air and fluid line applications. The coupling features a sleeve locking mechanism and includes a valve to regulate flow. Is constructed of steel with a zinc-plated finish and is rated for use with 1/4 inch hose inner diameter.
Key Features:
- - Application: On end of hose or pipe for fluid and air line connectivity.
- - Material and Finish: Steel body with zinc-plated coating for corrosion resistance.
- - Connection Type: (M)NPT thread, 1/4" -18 size, male hose fitting gender.
- - Coupling Component: Socket design with sleeve locking type.
- - Includes a tubular valve for controlling fluid or air flow.
- - Seal Material: Nitrile, suitable for a temperature range from -40°F to 250°F.
- - Maximum flow rate: 764.55 liters per minute.
- - Dimensions: Overall length of 2.06 inches, maximum outside diameter of 7/8 inch.
- - Interchange Type: Industrial standard compatibility.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 8.40
- Package Height: 5.50
- Package Weight: 19.58
