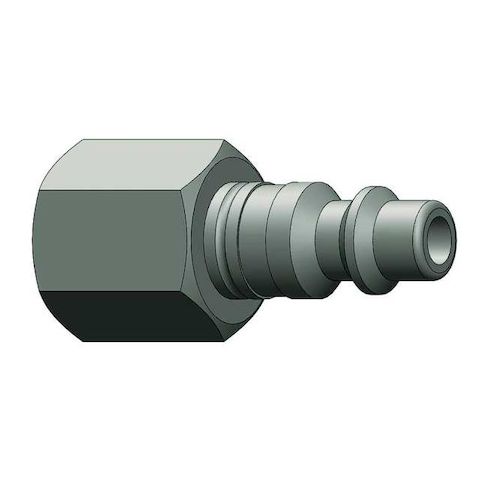

Female to indust. Plug, (F)NPT, 1/4, Steel MPN:D2F2
The DIXON - D2F2 Quick Connect Plug is a reliable and efficient solution for pneumatic and hydraulic fluid or air transfer applications. With its tool-free connection and disconnection mechanism, this coupling provides fast and easy hose connections and disconnections. Constructed from steel with a zinc-plated finish, it is durable and resistant to corrosion. Suitable for use in a wide range of industries, including manufacturing, construction, and agriculture, this plug is ideal for applications where quick and reliable fluid transfer is critical. Its high flow rate and temperature range make it a versatile and reliable choice for many applications.
Top product features:
- Tool-free connection and disconnection using a sleeve locking mechanism
- Supports pneumatic and hydraulic fluid or air transfer applications
- Provides connections using a nitrile O-ring pressure seal without an integrated valve
Top product applications:
- Pneumatic fluid transfer applications
- Hydraulic fluid transfer applications
- Air transfer applications
The DIXON - D2F2 is a quick connect hose coupling that supports tool-free connection and disconnection using a sleeve locking mechanism. It is intended for pneumatic and hydraulic fluid or air transfer applications. Constructed from steel with a zinc-plated finish, this coupling is rated for use with hoses having a 1/4 inch inner diameter and provides connections using a nitrile O-ring pressure seal without an integrated valve.
Key Features:
- - Coupling component: Plug (male half) with a female hose fitting.
- - Connection type: 1/4"-18 NPT threaded connection.
- - Body and coupling size: 1/4 inch nominal diameter.
- - Maximum flow rate: maximum specified flow rate: 764.55 liters per minute.
- - Seal material: Nitrile O-ring for pressure sealing.
- - Temperature range: specified operating temperature range: -40°F to 250°F.
- - Overall length: 1.69 inches.
- - Maximum outside diameter: 0.812 inches (13/16 in).
- - Finish: Zinc plated surface.
- - Interchange type: Industrial standard compatibility.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 6.40
- Package Height: 4.50
- Package Weight: 7.80
