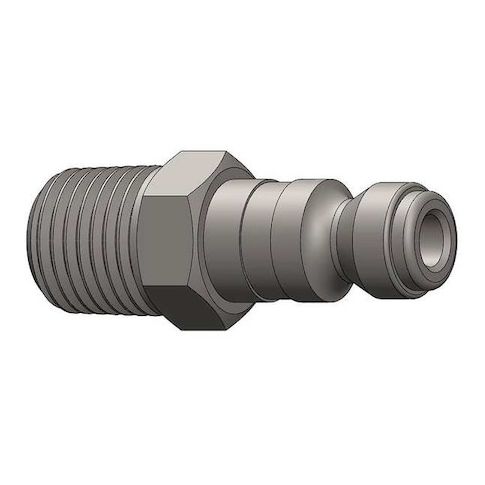

Male to Automotive Plug, (M)NPT, 3/8, Steel MPN:J3M2
This Dixon Tru-Flate-Automotive Male to Automotive Plug is a reliable and efficient quick connect hose coupling designed for demanding applications. Its steel construction ensures durability and resistance to corrosion, while the NPT threading guarantees a secure and leak-free connection. Suitable for a wide range of industries, including automotive, industrial, and manufacturing, this plug is ideal for high-pressure applications, such as fuel systems, hydraulic systems, and compressed air systems. With its ease of use and quick connection capabilities, this plug saves time and reduces labor costs, making it an essential component for any operation requiring reliable and efficient fluid transfer.
Top product features:
- Quick Connect design allows for easy attachment and detachment of hoses
- Tru-Flate-Automotive technology provides a secure seal and reliable connection
- Steel construction provides durability and resistance to corrosion
Top product applications:
- Automotive Air Brake System
- Automotive Fuel System
- Industrial Fluid Power System
The DIXON - J3M2 is a quick connect hose coupling for connection and disconnection without tools. It is compatible with equipment using the stated Tru-Flate-Automotive standard and specified thread/seal interfaces. The coupling features a sleeve locking mechanism and is constructed of steel with a zinc-plated finish for surface treatment. It does not include a valve and provides a pressure-sealed connection using a nitrile O-ring for sealing at the specified pressure. It is rated for maximum working pressure of 500 psi at 70°F and has a rated flow rate of 1,642.37 L/min (maximum, under specified conditions).
Key Features:
- - Coupling size and body size: 3/8 in nominal diameter.
- - Hose fitting size: 1/4 in with male hose fitting gender.
- - Connection interface uses NPT thread, 1/4"-18 thread size
- - Seal material: Nitrile O-ring for sealing at the specified pressure using the nitrile O-ring.
- - Maximum outside diameter: 13/16 in.
- - Overall length: 1.81 in (1 13/16 in).
- - Temperature range: is rated for operation in the -40°F to 250°F temperature range
- - Interchange type: Tru-Flate-Automotive standard.
- - Barbed end: No
- designed to connect via threaded NPT fitting rather than barbed hose tail.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 6.40
- Package Height: 4.60
- Package Weight: 4.57
