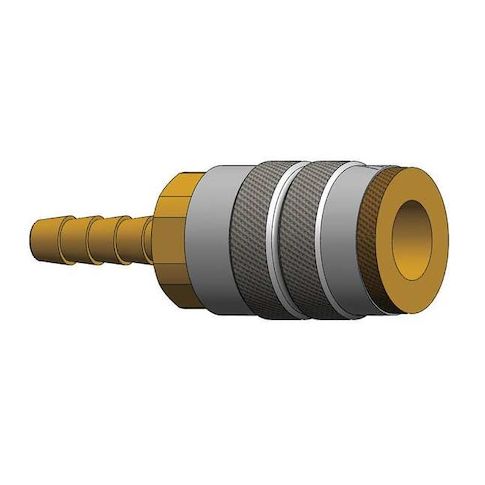

Barb to Indust. Coupler, Barb, 1/4, Steel MPN:2FS2
This 1/4 inch steel barb to industrial coupler is a quick connect hose coupling designed for heavy-duty applications. Its durable construction and secure connection make it ideal for use in industries such as manufacturing, oil and gas, and construction. The coupler's ease of use and reliability make it a valuable asset for any operation that requires frequent hose connections and disconnections. Its compact size and lightweight design also make it easy to handle and store. This coupler is suitable for a variety of applications, including hydraulic systems, pneumatic systems, and chemical transfer systems.
Top product features:
- Quick Connect Hose Coupling allows for rapid connection and disconnection of hoses.
- Industrial-grade steel construction provides durability and resistance to wear.
- Socket design enables secure and leak-free connections.
Top product applications:
- Hydraulic systems
- Pneumatic systems
- Coolant lines
The DIXON - 2FS2 is a quick-connection hose coupling designed for connects and disconnects using the sleeve locking mechanism at the end of hoses or pipes. It features a sleeve locking mechanism and includes a tubular valve to control fluid or air flow. This coupling is compatibility: for 1/4 in hose inner diameter and 1/4 in barb size, intended to form a sealed connection when installed with compatible hose/barb specifications for compatible compressed air and fluid transfer applications within the stated specifications. Its zinc-plated steel construction supports rated for operation within a temperature range of -40°F to 250°F and rated maximum working pressure: 500 psi at 70°F.
Key Features:
- - Hose Barb connection type with 1/4 in barb size and 1/4 in hose fitting size.
- - Coupling size and body size of 1/4 in suitable for standard industrial interchange.
- - Includes a socket coupling component with a sleeve locking type.
- - Maximum flow rate of 764.55 liters per minute.
- - Overall length of 2.5 inches and maximum outside diameter of 7/8 inch.
- - Constructed from zinc-plated steel.
- - Rated maximum working pressure: 500 psi at 70°F.
- - Rated temperature range: -40°F to 250°F.
- - Hose fitting gender is male.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.70
- Package Width: 9.00
- Package Height: 5.90
- Package Weight: 19.10
