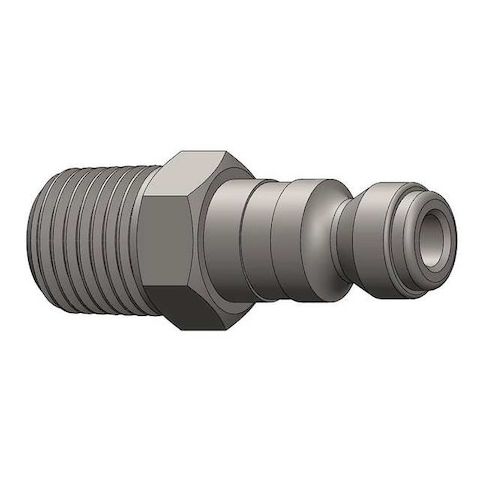

Male to Automotive Plug, (M)NPT, 1/4, Steel MPN:J2M3
This DIXON J2M3 Male to Automotive Plug is a reliable and efficient solution for connecting and disconnecting hoses or pipes in various applications. Its tool-free connection/disconnection feature and sleeve locking mechanism ensure a secure and easy connection, making it ideal for use in automotive, industrial, and commercial settings. With a maximum working pressure of 500 psi and a flow rate of 736.23 liters per minute, this plug is suitable for use with hoses and pipes in high-pressure and high-flow applications, including hydraulic systems, air tools, and pneumatic systems. Its durability and reliability make it a great choice for frequent use.
Top product features:
- Sleeve locking mechanism provides secure mating when connected to compatible couplers.
- 1/4 inch NPT male threaded end allows for easy connection to hoses or pipes.
- Nitrile seal O-ring seals at rated pressure and temperature, enabling safe fluid or air flow up to 736.23 liters per minute.
Top product applications:
- Automotive repair and maintenance
- Industrial fluid transfer systems
- Power transmission and hydraulic systems
The DIXON - J2M3 is a quick connect hose coupling for on-end attachment to hoses or pipes
- provides tool-free connection/disconnection when used with compatible couplers. It is constructed from steel with a zinc-plated finish and features a 1/4 inch NPT male connection. The coupling operates using a sleeve locking mechanism and is compatible with automotive style fittings, following the Tru-Flate-Automotive interchange standard. It is intended for use with hoses having a 3/8 inch inner diameter and matching hose fitting size. It is rated for fluid or air flow up to 736.23 liters per minute and maximum working pressure: 500 psi at 70°F. The nitrile seal O-ring is rated for operation within -40°F to 250°F.
Key Features:
- - Material: Steel body with zinc-plated finish for surface treatment.
- - Connection Type: 1/4 inch NPT male threaded end.
- - Locking Method: Sleeve locking connection for secure mating when connected to compatible couplers.
- - Coupling Type: Plug (male half) for insertion into a compatible coupler per Tru-Flate-Automotive interchange standard.
- - Hose Compatibility: Compatible with 3/8 inch inner diameter hoses with matching hose fitting size.
- - Interchange Standard: Tru-Flate-Automotive compatible fittings.
- - Maximum Flow Rate: 736.23 liters per minute.
- - Maximum Working Pressure: Maximum working pressure rating of 500 psi at 70°F.
- - Seal Material: Nitrile O-ring for sealing at rated pressure and temperature.
- - Operating Temperature Range: -40°F to 250°F.
- - Overall Length: 1.69 inches.
- - Maximum Outside Diameter: 0.813 inches.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 6.70
- Package Height: 5.20
- Package Weight: 7.88
