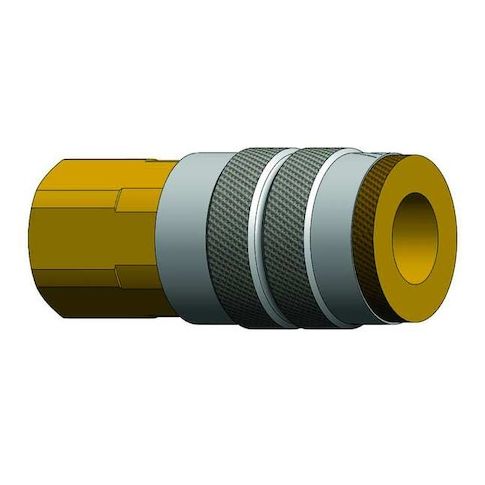

Coupler, Brass, 1/4 FNPT, 1/4 Body MPN:2FF2-B

The DIXON - 2FF2-B is a quick connect hose coupling configured for connection and disconnection without additional tools (socket-and-sleeve coupling design) at the end of a hose or pipe. It features a female hose fitting with a 1/4 inch size and a 1/4 inch NPT threaded connection type. Constructed from brass with a zinc-plated finish, this coupling is suitable for fluid and air lines, intended to form a sealed connection for fluid/air lines under the specified working pressure and temperature conditions. The coupling includes an integral tubular valve for controlling flow and operates with a sleeve locking mechanism. The coupling is rated for a maximum working pressure of 500 psi at 70°F and a maximum flow rate of 764.55 liters per minute, with operational temperatures ranging from -40°F to 250°F.

Key Features:

• - Application: On end of hose or pipe
• - Hose fitting gender: Female
• - Hose fitting size: 1/4 in
• - Connection type: NPT
• - Coupling component: Socket
• - Coupling locking type: Sleeve
• - Coupling size: 1/4 in
• - Includes valve: Yes, tubular type
• - Material: Brass
• - Finish/coating: Zinc plated
• - Seal material: Nitrile
• - Max. working pressure: 500 psi @ 70°F
• - Max. flow rate: 764.55 lpm
• - Overall length: 2.06 in (2 1/16 in)
• - Max. outside diameter: 15/16 in
• - Temperature range: -40°F to 250°F
• - Thread size: 1/4"-18
• - Interchange type: Industrial
