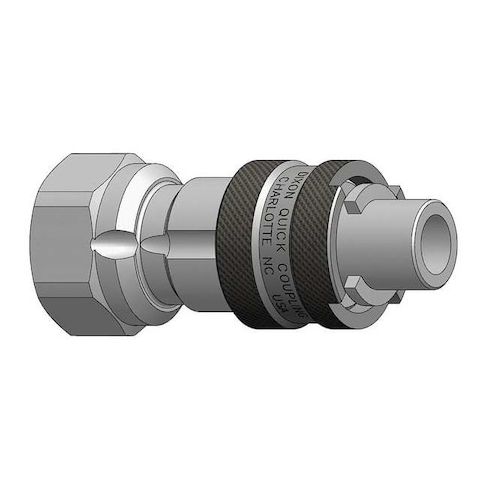

Female to Bowes Nipple, (F)NPT, 1/2, Brass MPN:N4F6-B

• The DIXON - N4F6-B is a quick connect hose coupling configured for connection and disconnection without tools (per sleeve locking mechanism design). It features a brass body with a zinc-plated finish and uses a sleeve locking mechanism to form a sealed connection using the specified sleeve locking mechanism and Nitrile seal. It is compatible with Bowes-style equipment when used with compatible thread and fitting specifications. It accepts a hose with a 3/4 in inner diameter and has a 1/2 in coupling size with female hose fitting gender. The fitting is rated for a maximum working pressure of 300 psi at 70°F and has a maximum flow rate rating of 5,776.64 liters per minute.

  Key Features:


  • - Material: Brass with zinc-plated finish for surface treatment.
  • - Connection type: 1/2" NPT thread size, female hose fitting.
  • - Hose fitting size: 1/2 in
  • designed for hose with 3/4 in inner diameter.
  • - Coupling component: Plug using a sleeve locking mechanism.
  • - Max working pressure: 300 psi at 70°F.
  • - Max flow rate: 5,776.64 liters per minute.
  • - Overall length: 3.44 in (3 7/16 in).
  • - Maximum outside diameter: 1.5 in (1 1/2 in).
  • - Seal material: Nitrile.
  • - Temperature range: -40°F to 250°F.
  • - Interchange type: Bowes style compatibility.
