Male to Bowes Nipple, (M)NPT, 1/2, Brass MPN:N4M6-B-LS

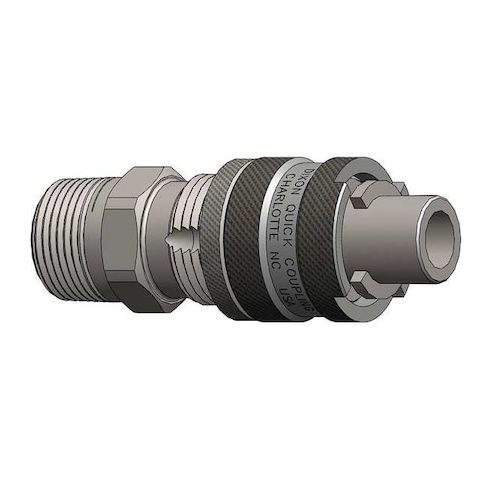

• The DIXON - N4M6-B-LS is a quick-connect hose coupling for tool-free connection and disconnection using the sleeve locking mechanism. It features a male plug with a sleeve locking mechanism intended to form a sealed connection

• seal performance depends on installation, hose condition, and operating conditions for air, water, or fluid lines. For use as a coupling on the ends of compatible hoses or pipes, it is compatible with specified connection standards for the listed connection type and dimensions, for use with quick-connect applications to enable connection and disconnection. The fitting is constructed from brass with a zinc-plated finish (material and finish as specified) and is for use in pneumatic, hydraulic, and fluid transfer applications within the specified pressure and temperature ranges.

  Key Features:


  • - Coupling Size and Body Size: 1/2 in
  • - Hose Fitting Size and Hose I.D.: 3/4 in
  • - Connection Type: 3/4"-14 NPT male thread
  • - Material: Brass with zinc plating
  • - Seal Material: Nitrile
  • - Locking Type: Sleeve
  • - Maximum working pressure rating: 300 psi at 70°F (use within this rating
  • exceeding ratings may reduce performance and increase risk of failure)
  • - Maximum flow rate rating: 5,776.64 liters per minute under rated conditions
  • - Temperature Range: -40°F to 250°F
  • - Overall Length: 3.63 in
  • - Maximum Outside Diameter: 1.31 in
