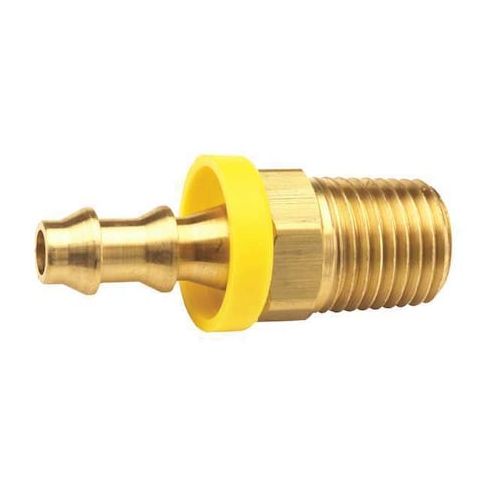

Push on Hose Fitting, 5/8"x3/4", BarbxNPT MPN:2721012C

The DIXON - 2721012C is a steadfast, push-on hose fitting featuring a straight, barb x thread style. It's meticulously constructed from Brass material, with a distinguished C36000 material grade, intended for use with a 5/8 inch hose I.D. This fitting showcases a 5/8-inch hose barb type A and a 3/4-inch NPT type B connections on either side. Also, it can hold a maximum operating pressure of 350 psi at a temperature range of up to 70 degrees Fahrenheit. Please note that this hose fitting cannot be reused.

Key Features:

• Barb Size: 5/8 in. This size pertains to the barb end of the hose fitting.
• Fitting Connection Type: Hose Barb x NPT. This connection type ensures a tight connection between the hose and a threaded pipe.
• Fitting Material: Brass x Brass. This highlights the fact that the fitting is fully made from Brass, which remarkably enhances its durability.
• Fitting Movement: Rigid. This suggests that the fitting is designed to remain constant without any flexibility at the connection points.
• Fitting Size: 5/8 in x 3/4 in. This relates to the size of the hose and pipe that the fitting can accommodate.
• Hex Head Size: 1 1/16 in. This suggests the size of the wrench or socket that might be required for installation or removal of the fitting.
• Hose Fitting A and B Connection Type: Hose Barb and NPT. These identify the types of connections at each end of the fitting.
• Hose Fitting A and B Gender: Male. This attribute of the fitting refers to the externally threaded connections.
• Hose Fitting A and B Size: This pertains to the size of the hose that the barb end (5/8 in) can fit as well as the size of the threaded connection (3/4 in).
• Material Grade: C36000. This denotes the specific type of Brass used in the making of the fitting.
• Max. Working Pressure @70 F: 350 psi. This is the maximum pressure that the fitting can support under regular use conditions.
