Barb to Bowes Nipple, Barb, 1/2, Brass MPN:N4S4-B
The DIXON N4S4-B hose coupling is a reliable and efficient tool for connecting and disconnecting hoses and pipes in various applications. Its sleeve locking mechanism allows for easy and secure attachment, while its brass body with zinc-plated finish provides durability and resistance to corrosion. Suitable for use in temperatures ranging from -40°F to 250°F, this coupling is ideal for industrial, commercial, and residential applications, including hydraulic systems, irrigation, and water supply systems. Its high flow rate and pressure rating make it a versatile and reliable solution for a wide range of fluid transfer needs.
Top product features:
- Hose barb size: 1/2 in for connecting to compatible hose I.D.
- Connection type: Hose barb with male fitting gender for easy attachment and detachment
- Seal material: Nitrile providing fluid-tight sealing for reliable operation
Top product applications:
- Hose connections in industrial settings
- Pneumatic or hydraulic system applications
- Automotive or agricultural equipment repair and maintenance

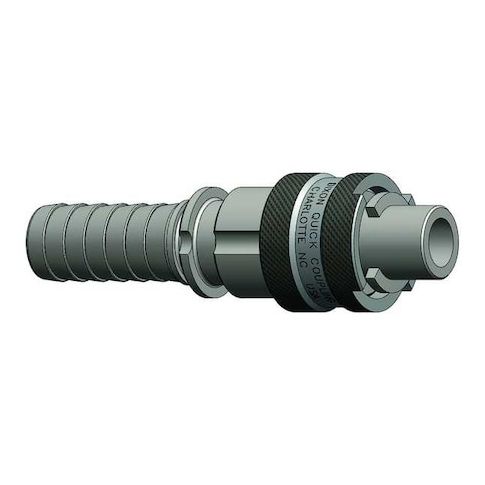

The DIXON - N4S4-B is a hose coupling with a sleeve locking mechanism intended for tool-free connection and disconnection when used with compatible couplers. It is a male plug compatible with Bowes style couplers, intended for use on the end of hoses or pipes. Constructed from brass with zinc plating, this coupling accepts 1/2 in inner diameter hoses via a 1/2 in barbed hose connection. It uses nitrile O-rings to form a seal under specified pressure and temperature conditions and is rated for operation within -40°F to 250°F. The coupling is rated for a maximum working pressure of 300 psi at 70°F ambient temperature and is rated for a maximum flow rate of 5,776.64 L/min.
Key Features:
- - Hose barb size: 1/2 in for connecting to compatible hose I.D.
- - Coupling size: 1/2 in, matching standard Bowes interchange fittings.
- - Material: Brass body with zinc-plated finish for surface protection.
- - Connection type: Hose barb with male fitting gender.
- - Coupling locking type: Sleeve for secure attachment.
- - Seal material: Nitrile providing fluid-tight sealing.
- - Maximum flow rate: 5,776.64 L/min indicating fluid throughput capability.
- - Maximum working pressure: 300 psi at 70°F ambient temperature.
- - Temperature range: -40°F to 250°F.
- - Overall length: 4.94 in and maximum outside diameter: 1.44 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.10
- Package Width: 7.20
- Package Height: 6.50
- Package Weight: 15.56
