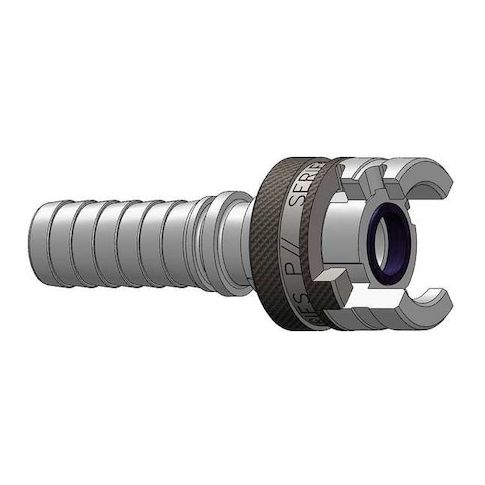

Barb to Thor Coupler, Barb, 1/2, Steel MPN:4PS3
Streamline your hose changes with the DIXON 4PS3 Quick Connect Hose Coupling Socket. Designed for rapid connection and disconnection of hoses or equipment, this push-to-connect locking mechanism forms a sealed connection to prevent leakage. Compatible with 3/8 in hoses and Thor style interchange standards, it's ideal for pneumatic and fluid systems. The steel construction with zinc-plated finish provides durability and surface protection. Use it for water or air applications in a variety of industries, from manufacturing to agriculture. With a maximum rated working pressure of 300 psi and a temperature range of -40°F to 250°F, it's a reliable choice for demanding environments.
Top product features:
- Push-to-connect locking mechanism for rapid, tool-free connection and disconnection of hoses or equipment.
- Sealed connection forms to prevent leakage when installed and used within specified pressure/temperature ranges.
- Nitrile seal material for fluid-tight sealing.
Top product applications:
- Pneumatic systems
- Fluid systems
- Water or air applications
The DIXON - 4PS3 is a quick connect hose coupling designed for rapid, tool-free connection and disconnection of hoses or equipment. It features a push-to-connect locking mechanism and forms a sealed connection intended to prevent leakage when installed and used within the specified pressure/temperature ranges. The fitting has a male hose barb connection with a barb size and hose fitting size of 3/8 in, compatible with hoses having a 3/8 in inner diameter. It is specified for use with water or air applications and is compatible with Thor style interchange standards, supporting streamlined hose changes in pneumatic and fluid systems.
Key Features:
- - Material: Steel construction with zinc-plated finish for surface protection.
- - Coupling component: Socket type fitting.
- - Coupling size: 1/2 in nominal connection diameter.
- - Maximum rated working pressure: 300 psi at 70°F.
- - Maximum rated flow rate: 7,079.21 liters per minute
- - Overall length: 3.50 in.
- - Maximum outside diameter: 1 9/16 in.
- - Seal material: Nitrile for fluid-tight sealing.
- - Rated operating temperature range: -40°F to 250°F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 6.50
- Package Height: 6.70
- Package Weight: 9.72
