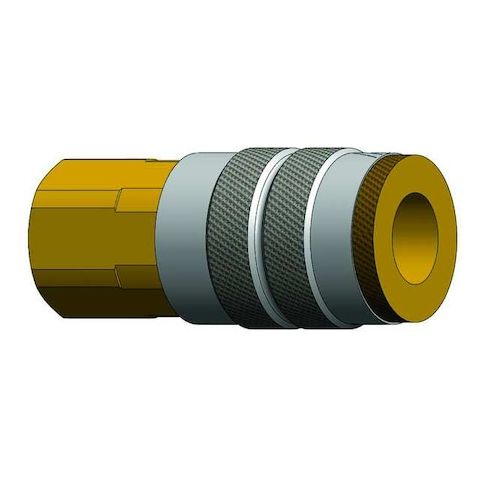

Female to Industrial Coupler, (F)NPT, 3/8 MPN:3FF3

• The DIXON - 3FF3 is a quick connect hose coupling configured for manual (tool-less) connection and disconnection at the coupling end. It features a sleeve locking mechanism for a connection intended to be sealed

• leak resistance depends on proper installation and compatible components for air, water, or fluid lines. Constructed from steel with a zinc-plated finish, this coupling includes an integrated tubular valve and a nitrile seal. It is compatible with hoses having an inner diameter of 3/8 in (as specified) and uses a 3/8"-18 female NPT threaded connection, making it compatible with specified industrial interchange standards when used with matching components.

  Key Features:


  • - Application: On end of hose or pipe
  • - Coupling Component: Socket
  • - Coupling Locking Type: Sleeve
  • - Body and Coupling Size: 3/8 in
  • - Hose Fitting Gender: Female
  • - Hose Fitting Size and Hose I.D.: 3/8 in
  • - Material: Steel with zinc-plated finish
  • - Includes Valve: Yes, tubular type
  • - Max Working Pressure: rated max working pressure: 500 psi at 70°F
  • - Max Flow Rate: 1,274.26 liters per minute
  • - Seal Material: includes a nitrile seal
  • - Operating Temperature Range: rated operating temperature range: -40°F to 250°F
  • - Overall Length: 2.44 in
  • - Max Outside Diameter: 1 1/8 in
