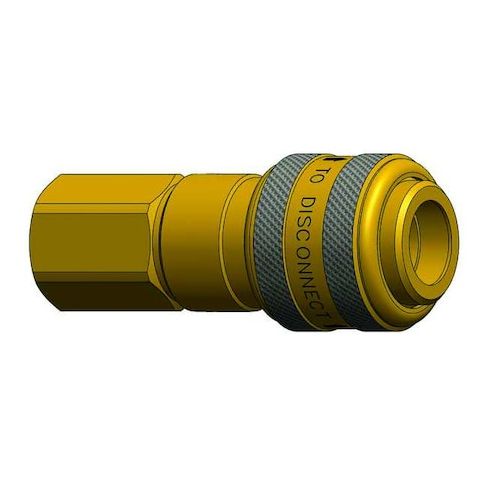

Coupler, Brass, 1/4 FNPT, 1/4 Body MPN:2DF2-B

The DIXON - 2DF2-B is a tool-less connection and disconnection (for hoses or equipment) at the end of a hose or pipe. It features a sleeve locking mechanism for connection between the coupling components and includes an integrated tubular valve for regulating flow through the coupling. Constructed from brass with a zinc-plated finish, this coupling is compatible with industrial interchange standards as applicable to the stated hose ID and connection type and supports hose with 1/4 in inner diameter (as specified). It is suitable for services water, air, or fluids and is rated for operating temperatures of -40°F to 250°F and maximum working pressure of 300 psi.
Key Features:

• - Hose fitting size and coupling size: 1/4 inch
• - Connection type: Female NPT thread, 1/4"-18
• - Coupling component: Socket
• - Material: Brass body with zinc-plated finish
• - Seal material: Nitrile
• - Max. flow rate: 764.55 L/min (as specified)
• - Overall length: 2.38 inches
• - Maximum outside diameter: 1 inch
• - Valve included: Yes, tubular type
• - Coupling locking type: Sleeve
• - Color: Yellow
• - Application: On end of hose or pipe
• - Interchange type: Industrial
