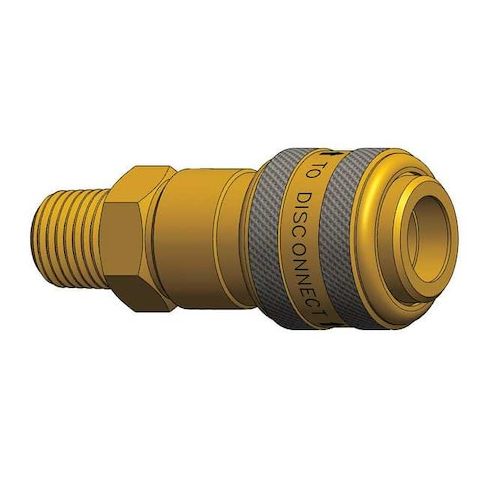

Male to Indust. Coupler, (M)NPT, 3/8, Brass MPN:3DM2-B
Male to Indust. Coupler, (M)NPT, 3/8, Brass
The DIXON - 3DM2-B is a hose coupling designed for tool-free connection and disconnection. The coupling features a male hose fitting and complies with the Industrial interchange standard. It includes an integrated valve with a prong-type mechanism to control fluid flow, for controlling fluid flow through the integrated valve.
Key Features:
- - Material: Brass construction for the main body.
- - Connection Type: Male NPT thread with a 1/4"-18 specification.
- - Coupling Size: 3/8 in with a socket component and sleeve locking mechanism.
- - Hose Fitting Size: 1/4 in inner diameter compatible.
- - Seal Material: Nitrile providing fluid sealing capability.
- - Finish: Zinc plated surface coating.
- - Maximum Working Pressure: 300 psi at 70°F.
- - Maximum Flow Rate: 1,274.25 liters per minute (under rated conditions).
- - Operating Temperature Range: From -40°F up to 250°F.
- - Overall Length: Measures 2.63 inches end to end.
- - Maximum Outside Diameter: 1.19 inches at the widest point.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.80
- Package Width: 9.10
- Package Height: 6.00
- Package Weight: 17.82
