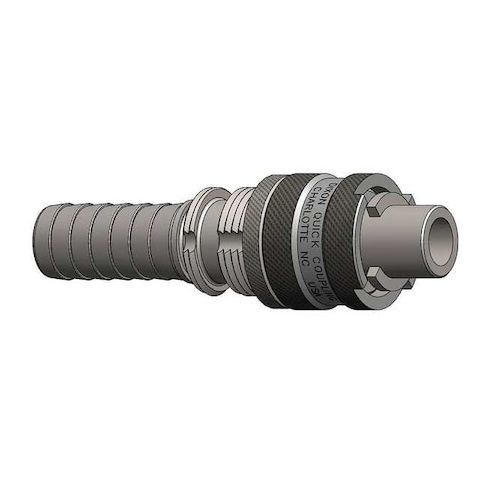

Barb to Bowes Nipple, Barb, 1/2, Brass MPN:N4S6-B-LS

The DIXON - N4S6-B-LS is a hose coupling with sleeve mechanism for connection/disconnection without tools (tool-free operation as specified). It features a Brass male plug with a hose barb connection (fixed specification), intended for use as an end coupling on a compatible hose or pipe (within specified size/interface). This coupling provides Nitrile seal and sleeve locking mechanism for sealing at specified pressure/temperature ratings (see max working pressure and temperature range), and is compatible with Bowes-style interchange systems (for compatible interface types only). Hose barb and coupling size compatibility: 3/4 in hose I.D. and 1/2 in coupling size. Zinc-plated finish for corrosion resistance (as specified), and the sealing is accomplished with nitrile material.

Key Features:

• - Material: Brass body construction.
• - Connection Type: Hose Barb with male fitting gender.
• - Application: On end of hose or pipe.
• - Coupling Locking Type: Sleeve mechanism.
• - Interchange Type: Bowes style.
• - Hose Fitting Size and Barb Size: 3/4 in hose I.D. and barb diameter.
• - Max. Working Pressure: Rated for operation at up to 300 psi at 70°F (max working pressure).
• - Max. Flow Rate: Rated maximum flow rate of 5,776.64 liters per minute (under specified conditions).
• - Temperature Range: -40°F to 250°F operating temperature.
• - Dimensions: Overall length of 4.94 in and maximum outside diameter of 1.44 in.
• - Seal Material: Nitrile.
• - Finish: Zinc plated for corrosion resistance (as specified).
