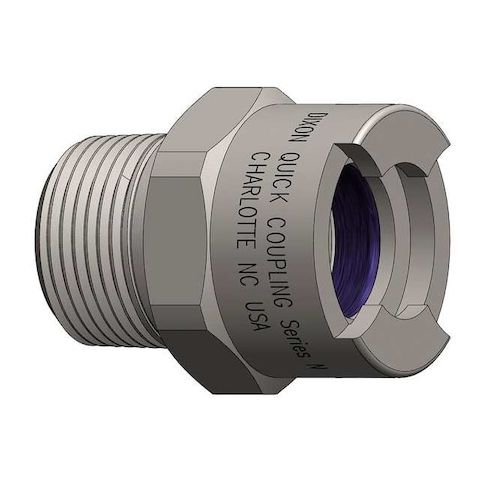

Female to Bowes Coupler, (M)NPT, 1/2, Brass MPN:4NM6-B
Female to Bowes Coupler, (M)NPT, 1/2, Brass
Connect and disconnect hoses quickly and easily with the Dixon Female to Bowes Coupler, a reliable and durable solution for a variety of applications. Made from high-quality brass, this coupler features a 1/2 inch coupling size and male NPT threads, making it perfect for use in plumbing, HVAC, and industrial settings. With its quick connect design, you can rapidly connect and disconnect hoses, reducing downtime and increasing efficiency. Suitable for use in a range of industries, including construction, manufacturing, and oil and gas, this coupler is a must-have for anyone working with hoses and fittings.
Top product features:
- Quick Connect design allows for easy attachment and detachment of hoses
- Brass construction provides durability and resistance to corrosion
- NPT threading enables secure and leak-free connections
Top product applications:
- Hydraulic systems for industrial machinery
- Automotive air conditioning systems
- Medical gas systems
The DIXON - 4NM6-B is a hose coupling designed for connection and disconnection using the push-to-connect locking mechanism
- tool-free connection/disconnection refers to use without additional tools as described by the locking mechanism. It uses a push-to-connect locking mechanism and provides a sealing interface for air, water, or compatible fluids when connected using the specified coupling and fittings. is is compatible with pneumatic, hydraulic, and general fluid transfer applications when used within the specified operating limits (maximum working pressure and temperature). The fitting is constructed from brass and designed to connect with 3/4 inch hose fittings and hoses with a 3/4 inch inner diameter.
Key Features:
- - Coupling component: Socket
- - Connection type: 3/4"-14 threaded (male)
- - Coupling size and body size: 1/2 inch
- - Finish: Zinc plated
- - Seal material: Nitrile
- - rated maximum working pressure: 300 psi at 70°F
- - maximum rated flow rate: 5,776.64 liters per minute (rating based on laboratory/spec-defined test conditions)
- - rated for operation within -40°F to 250°F
- - Overall length: 1.88 inches
- - Maximum outside diameter: 1.5 inches
- - Color: Yellow
- - Application: Connects on the end of hose or pipe using Bowes style interchange standard
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 6.40
- Package Height: 4.70
- Package Weight: 9.29
Product info last updated on March 1, 2026 10:16am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
