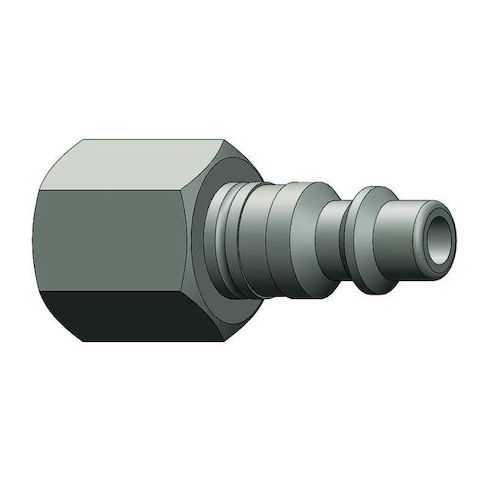

Female to Industrial Plug, (F)NPT, 1/4, SS MPN:D2F2-S
This Female to Industrial Plug is a high-quality, quick-connect hose coupling designed for industrial applications. Made from 303 stainless steel, it features a female NPT connection and is suitable for 1/4 inch couplings. Its durable construction ensures reliable performance in harsh environments. The plug is easily assembled and disassembled, making it ideal for applications where frequent connections and disconnections are required. It is commonly used in industries such as oil and gas, chemical processing, and manufacturing, where the ability to quickly and safely connect and disconnect hoses is crucial. Its compact size and lightweight design make it easy to handle.
Top product features:
- Quick Connect feature allows for easy and rapid connection to hoses
- Made of 303 Stainless Steel for durability and resistance to corrosion
- Female NPT thread provides a secure and leak-resistant connection
Top product applications:
- Pneumatic system connections
- Hydraulic system connections
- Coolant system connections
The DIXON - D2F2-S is designed for on-end of hose or pipe applications. It allows coupling and uncoupling using the sleeve locking mechanism without the use of tools. Constructed primarily from 303 stainless steel with a zinc-plated finish, it is intended for use in pneumatic, hydraulic, and general-purpose fluid transfer systems within the specified pressure and temperature ranges. The coupling is specified for use with hoses having a 1/4 in inner diameter and 1/4 in NPT female thread connections.
Key Features:
- - Coupling size: 1/4 in with matching hose fitting size of 1/4 in.
- - Material: 303 stainless steel body with zinc plating for sealing.
- - Connection type: Female NPT thread, 1/4" -18 thread size.
- - Seal material: Nitrile, uses a nitrile seal for sealing.
- - Overall length: 1.69 in (1 11/16 in).
- - Maximum outside diameter: 0.8125 in (13/16 in).
- - Interchange type: industrial standard
- - Coupling component type: Plug with a sleeve locking mechanism.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 6.70
- Package Height: 6.90
- Package Weight: 7.94
