Barb to Bowes Nipple, Barb, 1/2, Steel MPN:N4S6-LS

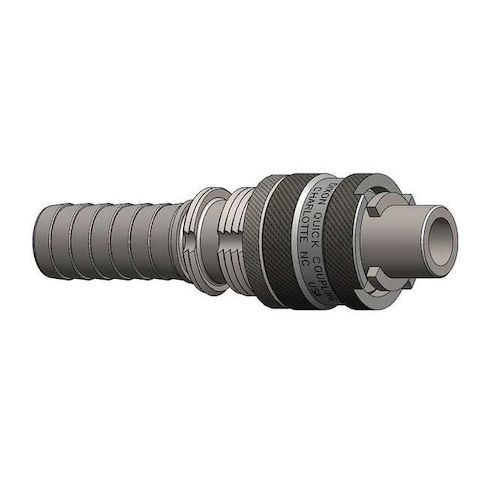

The DIXON - N4S6-LS is a quick connect hose coupling that supports quick connection and disconnection without an integrated tool attachment. It features a male, barbed hose fitting with a 3/4 in barb size and 3/4 in hose fitting size, compatible with Bowes style quick connect couplings. Constructed of steel with a zinc-plated finish, this plug-type coupling uses a sleeve locking mechanism and includes a nitrile seal material for sealing during fluid transfer for fluid transfer and pneumatic applications rated for operation up to 500 psi. The fitting is rated for operation within a temperature range of -40°F to 250°F and supports a maximum flow rate of 5,776.64 liters per minute.

Key Features:

• - Material: Steel with zinc-plated coating
• - Hose barb connection type with 3/4 in barb size and hose fitting size
• - Male hose fitting gender and Bowes interchange type
• - Coupling size of 1/2 in with sleeve locking mechanism
• - Maximum working pressure of 500 psi at 70°F
• - Maximum flow rate of 5,776.64 lpm
• - Overall length of 4.94 in and maximum outside diameter of 1.438 in
• - Nitrile seal material used for sealing
• - Operating temperature range from -40°F to 250°F
• - Does not include an integrated valve
