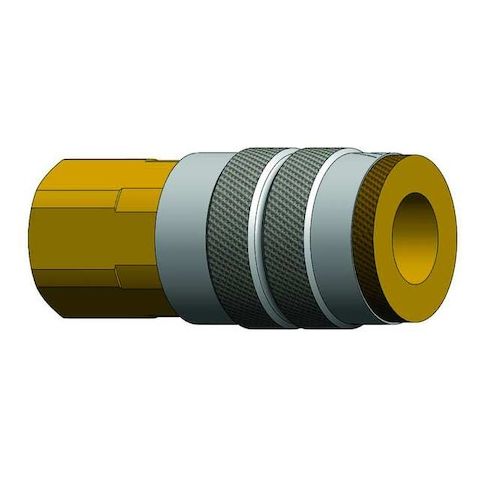

Female to Industrial Coupler, (F)NPT, 1/2 MPN:4FF6

The DIXON - 4FF6 is a quick connect hose coupling designed for tool-free, rapid joining and separation of hoses or pipes at their ends. It features a sleeve locking mechanism and includes a tubular valve to control fluid or air flow. Constructed from zinc-plated steel with nitrile seals, it is rated for use as a sealed connection with nitrile seals under the stated pressure and temperature conditions. The coupling is compatible with 3/4 inch hose inner diameter fittings and uses a 3/4" - 14 female thread size adhering to the Industrial interchange standard. Intended for fluid transfer applications including pneumatic and hydraulic systems within the stated specifications.

Key Features:

• - Coupling size and body size: 1/2 in
• - Hose fitting gender: Female
• - Connection type: NPT thread
• - Maximum working pressure (per specification): 500 psi at 70°F
• - Maximum flow rate (per specification): 2,576.83 liters per minute
• - Operating temperature range (per specification): -40°F to 250°F
• - Overall length: 3.19 in
• - Maximum outside diameter: 1.25 in
• - Finish: Zinc plated
• - Seal material: Nitrile
• - Valve included: Yes, tubular type
