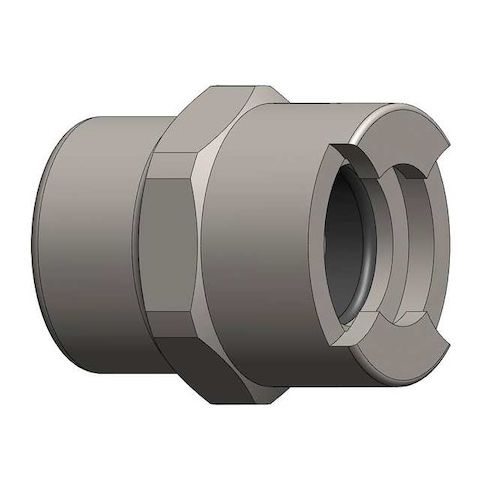

Female to Bowes Coupler, (F)NPT, 1/2, Brass MPN:4NF4-B

• The DIXON - 4NF4-B is a quick connect hose coupling with push-to-connect locking for tool-free connection/disconnection of compatible hoses/pipe ends. Made from brass and finished with zinc plating, this socket-type coupling forms a seal at the connection when installed and used within the stated specifications and is compatible with specified fluid or air line applications. is for use at the end of a hose or pipe and with compatible fittings. The coupling accommodates a hose fitting size and hose inner diameter of 1/2 inch, with a nominal thread size of 1/2" -14 female NPT connection.

  Key Features:


  • - Material: Brass with zinc plated finish
  • - Connection Type: Female NPT, 1/2" -14 thread size
  • - Coupling Component: Socket with push-to-connect locking type
  • - Hose Fitting Size: 1/2 inch
  • Hose Inner Diameter: 1/2 inch
  • - Application: is for use at the end of a hose or pipe and is compatible with Bowes-style fittings and interchange standards when matched to the stated hose fitting size and NPT connection size
  • - Maximum Working Pressure: maximum working pressure is 300 psi at 70°F
  • - Maximum Flow Rate: maximum flow rate is 5,776.64 L/min under rated conditions
  • - Seal Material: Nitrile
  • - Operating Temperature Range: operating temperature range is -40°F to 250°F when used within specifications
  • - Overall Length: 1.63 inches
  • Maximum Outside Diameter: 1.563 inches
  • - Barbed: No
