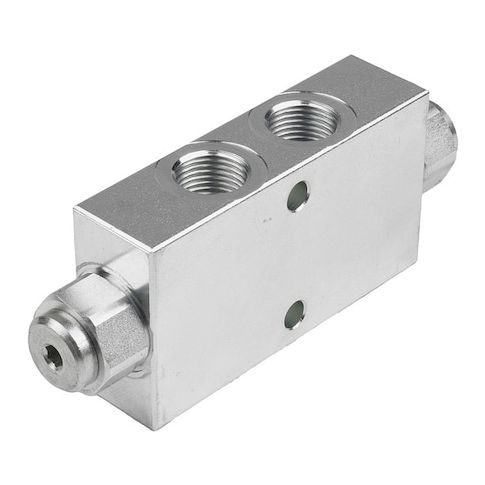

Hydraulic Check Valve, Poppet, #10 SAE O-Ring Boss Female, Steel Body, 30 gpm MPN:DAPOCV-60-210-SAE10
Free Shipping
In Stock
The DELAVAN FLUID POWER Hydraulic Check Valve is a reliable and efficient solution for controlling fluid flow in various applications. With a maximum pressure rating of 3,000 psi and a flow rate of 30 gpm, this valve is suitable for use in heavy-duty industrial settings, such as construction, manufacturing, and oil and gas operations. Its two-way control direction and reverse free flow feature ensure smooth and uninterrupted flow, making it an ideal choice for applications where fluid pressure and flow rate need to be precisely controlled. Its compact design and durable steel construction make it a valuable addition to any hydraulic system.
Top product features:
- Allows fluid to flow in one direction and prevents reverse flow
- Operates at a maximum pressure of 3,000 psi
- Has a maximum flow rate of 30 gallons per minute
Top product applications:
- Hydraulic systems in industrial manufacturing
- Automotive brake systems
- Pneumatic and hydraulic systems in aerospace engineering
DELAVAN FLUID POWER DAPOCV-60-210-SAE10 is an inline hydraulic check valve for one-direction oil flow and reverse-flow restriction in hydraulic systems. This pressure-actuated, spring-return poppet valve provides on/off control with reverse free flow and is rated for flow up to 30 gpm and pressure up to 3,000 psi.
Key Features:
- Steel body with zinc finish.
- Hydraulic check valve for oil service.
- Pressure-actuated, two-way valve with on/off control.
- Poppet valve design with spring return.
- Cracking pressure: 65 psi.
- Flow rate: 0 to 30 gpm.
- Cv rating: 15.
- Maximum fluid viscosity: 1,000 SUS.
- Operating temperature range: -4 to 175 degrees F.
- Maximum pressure: 3,000 psi.
- Inline mounting.
- Female #10 SAE O-ring boss inlet and outlet connections.
- Female SAE 45-degree flare pilot connection.
- Relief valve not included.
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 4.50
- Package Height: 4.20
- Package Weight: 4.31
